Article: DMC-000030773

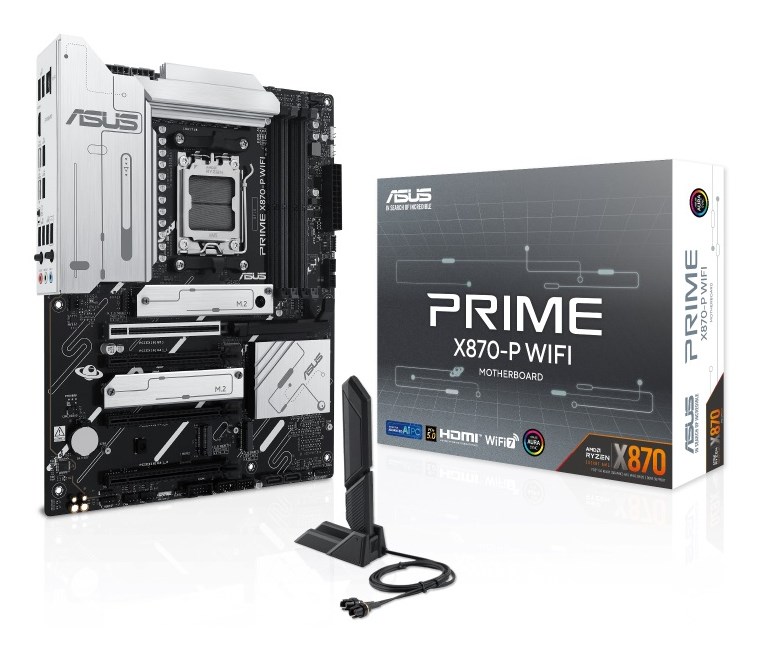

ASUS Prime X870-P WIFI AMD X870 Motherboard AM5 Socket ATX 90MB1IS0-M0EAY0 DDR5

ASUS Prime X870-P WIFI AMD X870 Motherboard

ASUS Prime X870-P WIFI AMD X870 Motherboard has the AM5 processor socket. It also has the AMD X870 chipset.

Characteristics
Component type
Motherboard
Processor socket
AM5
Supported memory type
DDR5
Motherboard chipset
AMD X870
Maximum supported memory speed
8000 MHz
Processor | Processor manufacturer
AMD
Processor | Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor | Supported processor sockets
Socket AM5
Graphics | On-board graphics card
No
Graphics | Parallel processing technology support
Not supported
Features | Audio output channels
7.1 channels
Features | Power source type
ATX
Features | Cooling type
Passive
Features | Windows operating systems supported
Windows 11, Windows 10
Features | Motherboard form factor
ATX
Features | Motherboard chipset family
AMD
Features | Product colour
Black
Memory | Supported memory clock speed (max)
8000 MHz
Memory | Supported memory types
DDR5-SDRAM
Memory | Memory slots type
DIMM
Memory | Number of memory slots
4
Memory | Unbuffered memory
Yes
Memory | Memory channels
Dual-channel
Memory | ECC сompatibility
ECC & Non-ECC
Memory | Maximum internal memory
192 GB
Weight & dimensions | Height
48 mm
Weight & dimensions | Width
305 mm
Weight & dimensions | Depth
244 mm
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | Bluetooth version
5.4
Network | Wi-Fi
Yes
Network | Wi-Fi standards
Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)
Network | Ethernet LAN
Yes
Network | Bluetooth
Yes
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | RGB LED pin header
Yes
Internal I/O | 12V power connector
Yes
Internal I/O | USB 2.0 connectors
2
Internal I/O | Front panel audio connector
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Internal I/O | Number of COM connectors
1
Internal I/O | Number of SATA III connectors
2
Internal I/O | Number of chassis fan connectors
4
Internal I/O | TPM connector
Yes
Internal I/O | CPU fan connector
Yes
Internal I/O | ATX Power connector (24-pin)
Yes
BIOS | BIOS type
UEFI AMI
Packaging data | Package weight
1.56 kg
Packaging data | Package width
353 mm
Packaging data | Package height
68 mm
Packaging data | Package depth
273 mm
Packaging content | Cables included
SATA
Storage controllers | Number of storage drives supported
6
Storage controllers | Number of HDDs supported
2
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | RAID support
Yes
Storage controllers | RAID levels
1, 5, 10, 0
Storage controllers | Supported storage drive types
HDD & SSD
Rear panel I/O ports | USB4 Gen 2x2 ports quantity
2
Rear panel I/O ports | Line-in
Yes
Rear panel I/O ports | Microphone in
Yes
Rear panel I/O ports | USB 2.0 ports quantity
4
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | HDMI version
2.1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | DisplayPort version
1.4a
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Expansion slots | PCI Express x16 (Gen 4.x) slots
3
Expansion slots | Number of M.2 (M) slots
4
Other features | Back-to-BIOS button
Yes
Other features | Weight
1.56 kg
Safety warning | Warnings
Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste.
