Article: DMC-000033249

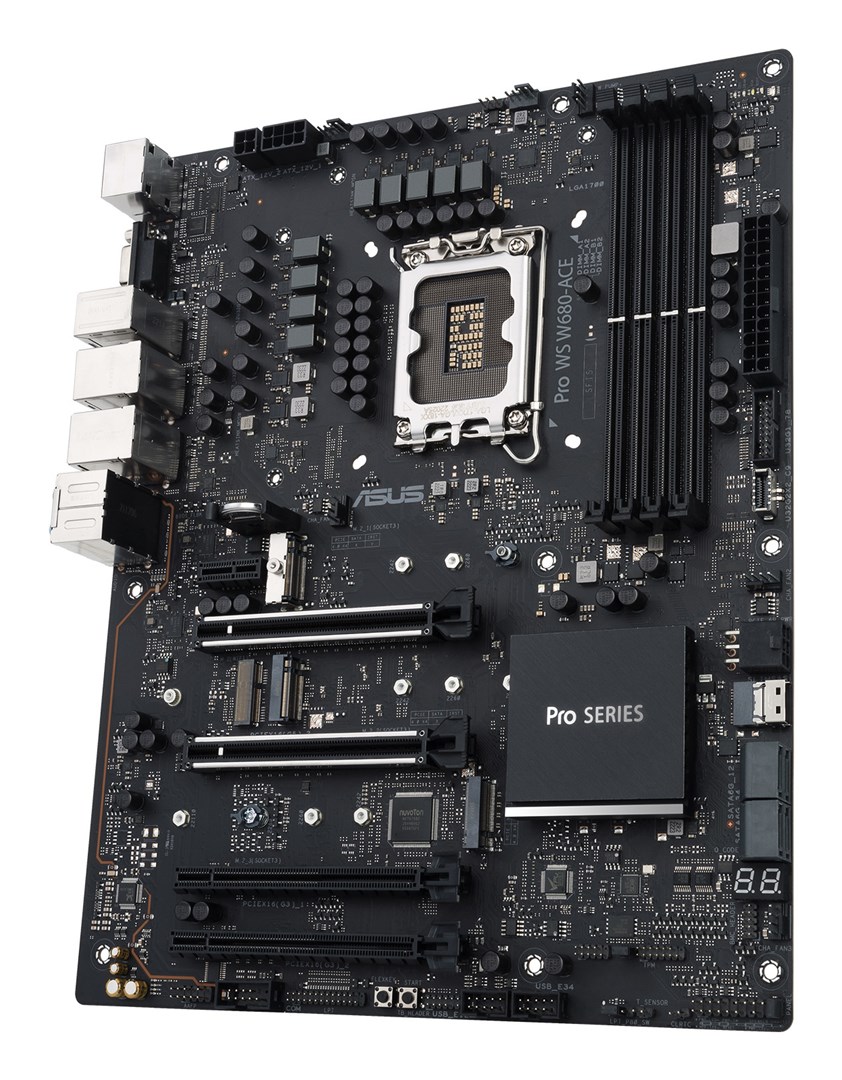

ASUS PRO WS W680-ACE Intel W680 LGA 1700 ATX motherboard 90MB1DZ0-M0EAY0

ASUS PRO WS W680-ACE Motherboard

A motherboard for assembling or upgrading a compatible desktop computer. It brings the main components together and provides the foundation for a well-planned system build.

Characteristics
Component type
Motherboard
Processor socket
LGA 1700
Supported memory type
DDR5
Motherboard chipset
Intel W680
Processor | Supported processor sockets
LGA 1700
Processor | Compatible processor series
Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor | Processor manufacturer
Intel
Processor | Maximum number of SMP processors
1
Graphics | Parallel processing technology support
Not supported
Graphics | On-board graphics card
No
Features | Audio output channels
7.1 channels
Features | Product colour
Black
Features | Motherboard chipset family
Intel
Features | Power source type
ATX
Features | Motherboard form factor
ATX
Features | Cooling type
Passive
Features | Windows operating systems supported
Windows 10 x64, Windows 11
Features | Component for
PC
Memory | Maximum internal memory
128 GB
Memory | Unbuffered memory
Yes
Memory | ECC сompatibility
ECC & Non-ECC
Memory | Memory channels
Dual-channel
Memory | Number of memory slots
4
Memory | Supported memory types
DDR5-SDRAM
Memory | Memory slots type
DIMM
Weight & dimensions | Width
305 mm
Weight & dimensions | Height
50 mm
Weight & dimensions | Depth
244 mm
Network | Wi-Fi
No
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | Ethernet LAN
Yes
Internal I/O | Number of SATA III connectors
4
Internal I/O | Thunderbolt headers
1
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Internal I/O | USB 2.0 connectors
2
Internal I/O | TPM connector
Yes
Internal I/O | CPU fan connector
Yes
Internal I/O | Number of COM connectors
1
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | Number of chassis fan connectors
3
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | Front panel audio connector
Yes
Internal I/O | Peripheral (Molex) power connectors (4-pin)
1
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | 12V power connector
Yes
Internal I/O | Integrated SAS ports
1
BIOS | BIOS type
UEFI AMI
BIOS | BIOS memory size
256 Mbit
Packaging data | Package width
331 mm
Packaging data | Package depth
266 mm
Packaging data | Package weight
1.18 kg
Packaging data | Package height
76 mm
Packaging content | Cables included
SATA
Packaging content | User guide
Yes
Storage controllers | Supported storage drive interfaces
M.2, NVMe, SATA III
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | RAID levels
5, 10, 1, 0
Storage controllers | Number of HDDs supported
8
Storage controllers | Number of storage drives supported
11
Rear panel I/O ports | DisplayPort version
1.4
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
2
Rear panel I/O ports | USB 2.0 ports quantity
2
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | VGA (D-Sub) ports quantity
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Rear panel I/O ports | HDMI version
2.1
Rear panel I/O ports | Line-in
Yes
Rear panel I/O ports | Microphone in
Yes
Expansion slots | Number of M.2 (M) slots
3
Expansion slots | PCI Express x1 (Gen 3.x) slots
1
Expansion slots | PCI Express x16 (Gen 3.x) slots
2
Other features | Weight
997 g
Other features | Back-to-BIOS button
Yes
Other features | Number of M.2 (E) slots
1
Safety warning | Warnings
The product contains electrical components - take care during installation to avoid injury., Adjust adequate ventilation to avoid overheating and potential damage., Avoid contact with liquids and moisture to prevent damage to equipment.
