Article: DMC-000030793

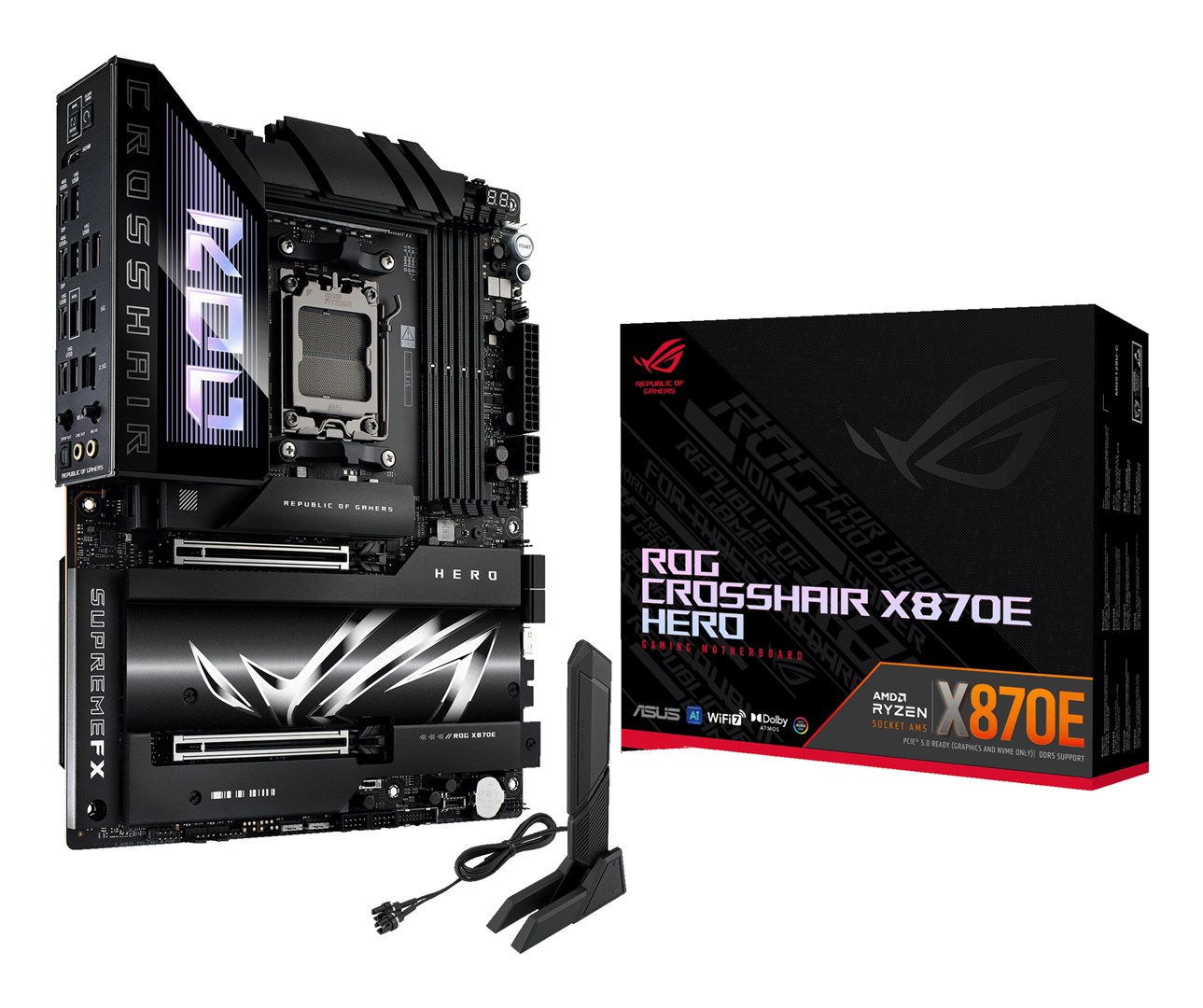

ASUS ROG CROSSHAIR X870E HERO AMD X870E Socket AM5 ATX 90MB1IE0-M0EAY0

ASUS ROG CROSSHAIR X870E HERO Motherboard

A motherboard for assembling or upgrading a compatible desktop computer. It brings the main components together and provides the foundation for a well-planned system build.

Characteristics
Component type
Motherboard
Processor socket
AM5
Motherboard chipset
X870E
Supported memory type
DDR5
Processor | Processor manufacturer
AMD
Processor | Supported processor sockets
Socket AM5
Graphics | Parallel processing technology support
Not supported
Features | Motherboard form factor
ATX
Features | Windows operating systems supported
Windows 11
Features | Audio chip
Realtek ALC4082
Features | Motherboard chipset family
AMD
Features | Audio output channels
7.1 channels
Memory | Number of memory slots
4
Memory | Memory channels
Dual-channel
Memory | Maximum internal memory
192 GB
Memory | Unbuffered memory
Yes
Memory | Supported memory types
DDR5-SDRAM
Memory | Memory slots type
DIMM
Memory | ECC сompatibility
ECC & Non-ECC
Weight & dimensions | Height
50 mm
Weight & dimensions | Depth
244 mm
Weight & dimensions | Width
305 mm
Network | Bluetooth
Yes
Network | Bluetooth version
5.4
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network | Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Network | Ethernet LAN
Yes
Network | Wi-Fi
Yes
Network | Wi-Fi standards
Wi-Fi 7 (802.11be)
Internal I/O | Number of chassis fan connectors
4
Internal I/O | Front panel audio connector
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | 12V power connector
Yes
Internal I/O | USB 2.0 connectors
2
Internal I/O | Number of SATA III connectors
4
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Internal I/O | CPU fan connector
Yes
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | USB 3.2 Gen 2x2 connectors
2
BIOS | BIOS type
UEFI AMI
BIOS | Clear CMOS button
Yes
Packaging data | Package width
370 mm
Packaging data | Package depth
312 mm
Packaging data | Package weight
4.26 kg
Packaging data | Package height
108 mm
Packaging content | Cables included
SATA
Packaging content | Drivers included
Yes
Storage controllers | Supported storage drive interfaces
M.2, SATA III, SlimSAS
Storage controllers | Number of HDDs supported
5
Storage controllers | Number of storage drives supported
10
Storage controllers | RAID levels
1, 0, 5, 10
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive types
HDD & SSD
Rear panel I/O ports | Headphone outputs
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
Rear panel I/O ports | S/PDIF out port
Yes
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | WiFi-AP antenna jack
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
2
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Rear panel I/O ports | Microphone in
Yes
Rear panel I/O ports | USB4 Gen 2x2 ports quantity
2
Expansion slots | Number of M.2 (M) slots
5
Expansion slots | PCI Express x16 (Gen 4.x) slots
4
Expansion slots | PCI Express x16 (Gen 5.x) slots
2
Other features | Weight
2.55 kg
