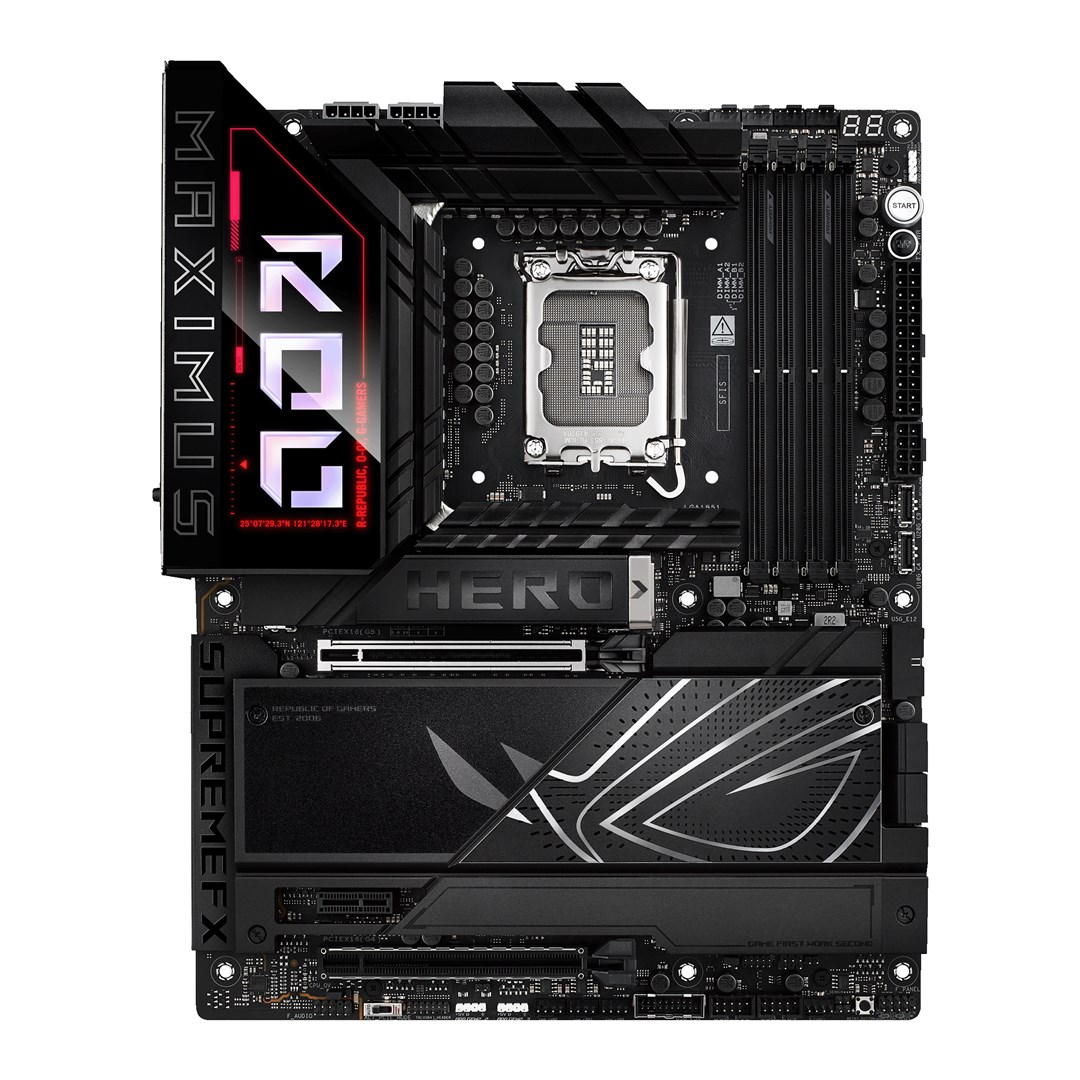

ASUS ROG MAXIMUS Z890 HERO Intel Z890 LGA 1851 (Socket V1) ATX 90MB1ID0-M0EAY0

ASUS ROG MAXIMUS Z890 HERO Motherboard

ASUS ROG MAXIMUS Z890 HERO Motherboard has the LGA 1851 processor socket. It also has the Intel Z890 chipset.

Characteristics
Component type
Motherboard
Processor socket
LGA 1851
Supported memory type
DDR5
Motherboard chipset
Intel Z890
Maximum supported memory speed
8800 MHz
Processor | Compatible processor series
Intel Core Ultra (Series 2)
Processor | Processor manufacturer
Intel
Graphics | Parallel processing technology support
Not supported
Graphics | On-board graphics card
No
Features | Motherboard form factor
ATX
Features | Product colour
Black
Features | Audio chip
Realtek ALC4082
Features | Audio output channels
7.1 channels
Features | Motherboard chipset family
Intel
Features | Windows operating systems supported
Windows 11
Memory | Number of memory slots
4
Memory | Memory channels
Dual-channel
Memory | Unbuffered memory
Yes
Memory | Maximum internal memory
192 GB
Memory | Supported memory types
DDR5-SDRAM
Memory | Memory slots type
DIMM
Memory | ECC сompatibility
Non-ECC
Memory | Supported memory clock speed (max)
8800 MHz
Weight & dimensions | Width
305 mm
Weight & dimensions | Depth
244 mm
Network | Bluetooth version
5.4
Network | Wi-Fi
Yes
Network | Ethernet interface type
5 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network | Bluetooth
Yes
Network | Ethernet LAN
Yes
Internal I/O | Front panel audio connector
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | USB 2.0 connectors
2
Internal I/O | Number of SATA III connectors
4
Internal I/O | Thunderbolt headers
1
Internal I/O | CPU fan connector
Yes
Internal I/O | Number of chassis fan connectors
4
Internal I/O | 12V power connector
Yes
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Internal I/O | USB 3.2 Gen 2x2 connectors
1
BIOS | Clear CMOS button
Yes
BIOS | BIOS type
UEFI AMI
Packaging data | Package width
370 mm
Packaging data | Package depth
312 mm
Packaging data | Package height
108 mm
Storage controllers | Number of storage drives supported
10
Storage controllers | RAID levels
5, 0, 1
Storage controllers | Number of HDDs supported
4
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | Supported storage drive types
HDD & SSD
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
2
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | S/PDIF out port
Yes
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Rear panel I/O ports | USB connector type
USB Type-C, USB Type-A
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Rear panel I/O ports | Thunderbolt ports quantity
2
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
Rear panel I/O ports | Microphone in
Yes
Expansion slots | Number of M.2 (M) slots
6
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | PCI Express x1 (Gen 4.x) slots
1
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
