Article: DMC-000032877
ASUS ROG STRIX B550-F GAMING Motherboard 90MB14S0-M0EAY0

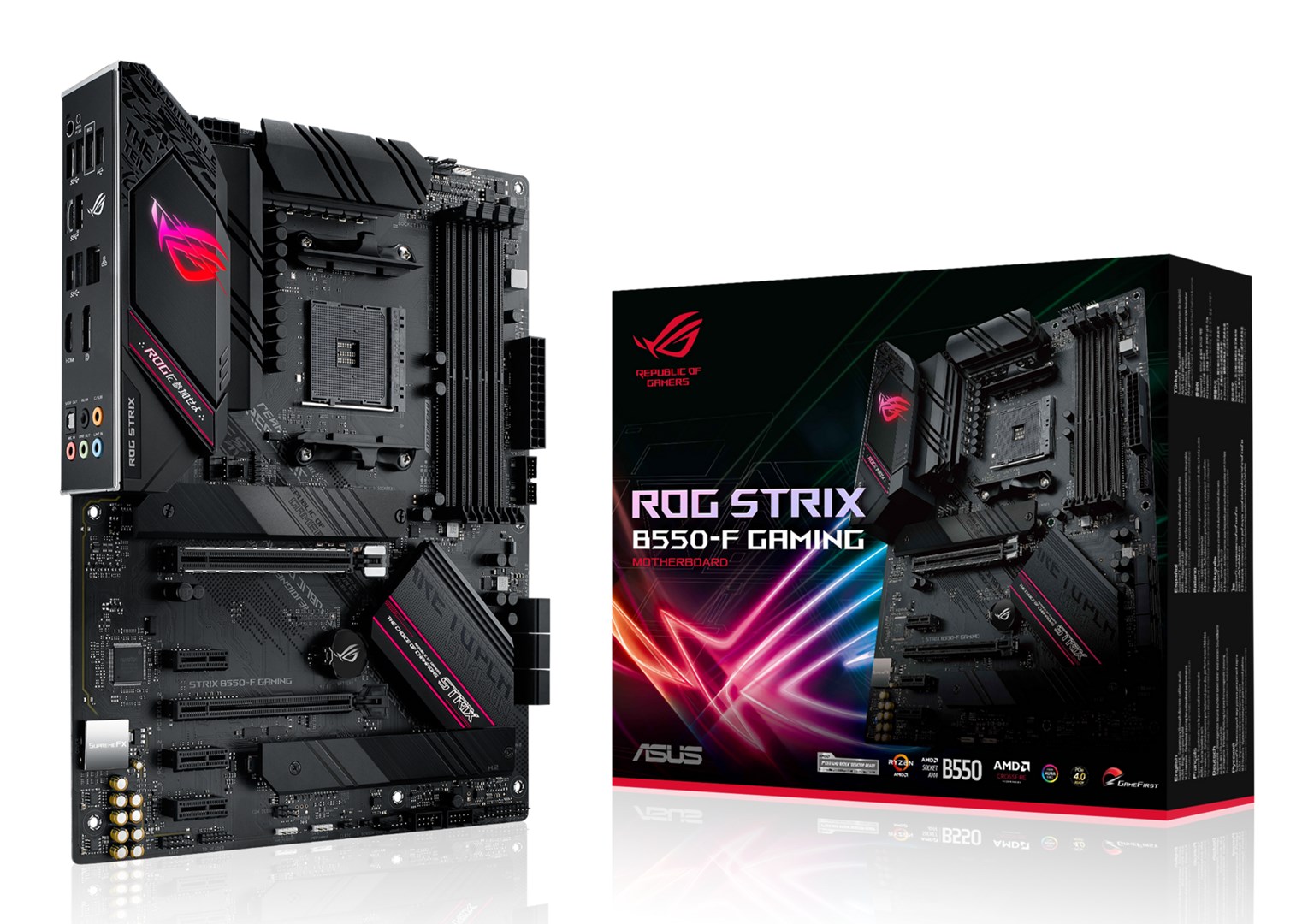

ASUS ROG STRIX B550-F GAMING Motherboard

ASUS ROG STRIX B550-F GAMING Motherboard has the AM4 processor socket. It also has the B550 chipset.

Characteristics
Component type
Motherboard
Processor socket
AM4
Motherboard chipset
B550
Form factor
ATX
Supported memory type
DDR4
Processor | Supported processor sockets
Socket AM4
Processor | Processor manufacturer
AMD
Processor | Compatible processor series
AMD Ryzen 3000 Series
Processor | Maximum number of SMP processors
1
Graphics | On-board graphics card
No
Graphics | Parallel processing technology support
2-Way CrossFireX
Features | Windows operating systems supported
Windows 10 Pro, Windows 10 IoT Enterprise, Windows 10 Home x64, Windows 10 Home, Windows 10 Enterprise, Windows 10 Education, Windows 10 Pro x64, Windows 10 Enterprise x64, Windows 10 x64, Windows 10 Education x64, Windows 10, Windows 10 IOT Core
Features | Component for
PC
Features | Cooling type
Active
Features | Product colour
Black
Features | Motherboard chipset family
AMD
Features | Audio output channels
7.1 channels
Features | Motherboard form factor
ATX
Features | PC health monitoring
CPU, Fan
Features | Power source type
ATX
Memory | Number of memory slots
4
Memory | Memory slots type
DIMM
Memory | Supported memory types
DDR4-SDRAM
Memory | Supported memory clock speeds
3866, 3000, 2133, 3200 MHz, 2666, 3466, 3600, 4133, 4400 MHz, 4000, 2400, 2800, 4600
Memory | Maximum internal memory
128 GB
Weight & dimensions | Width
305 mm
Weight & dimensions | Depth
244 mm
Weight & dimensions | Height
68 mm
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | Bluetooth version
5.0
Network | Wi-Fi
No
Network | Ethernet LAN
Yes
Network | LAN controller
Intel I225-V
Network | Wake-on-LAN ready
Yes
Network | Bluetooth
Yes
Internal I/O | 12V power connector
Yes
Internal I/O | Number of chassis fan connectors
3
Internal I/O | CPU fan connector
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | Number of EATX power connectors
1
Internal I/O | Thunderbolt headers
1
Internal I/O | Number of SATA III connectors
6
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Internal I/O | USB 2.0 connectors
2
BIOS | BIOS memory size
256000 Mbit
BIOS | BIOS type
UEFI AMI
Packaging content | Drivers included
Yes
Packaging content | Cables included
SATA
Packaging content | Manual
Yes
Storage controllers | Number of HDDs supported
6
Storage controllers | RAID levels
0, 1, 10
Storage controllers | Number of storage drives supported
6
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | RAID support
Yes
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | HDMI version
2.1
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Rear panel I/O ports | Headphone outputs
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Rear panel I/O ports | Microphone in
Yes
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | S/PDIF out port
Yes
Rear panel I/O ports | USB 2.0 ports quantity
2
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | DisplayPort version
1.2
Expansion slots | PCI Express x16 (Gen 3.x) slots
1
Expansion slots | Number of M.2 (M) slots
2
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | PCI slots
7
Expansion slots | PCI Express x1 (Gen 3.x) slots
3
Expansion slots | PCI Express slots version
4.0, 3.0
Other features | Weight
945 g
Logistics data | Harmonized System (HS) code
84733020
Safety warning | Warnings
Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture.
