Article: DMC-000038028

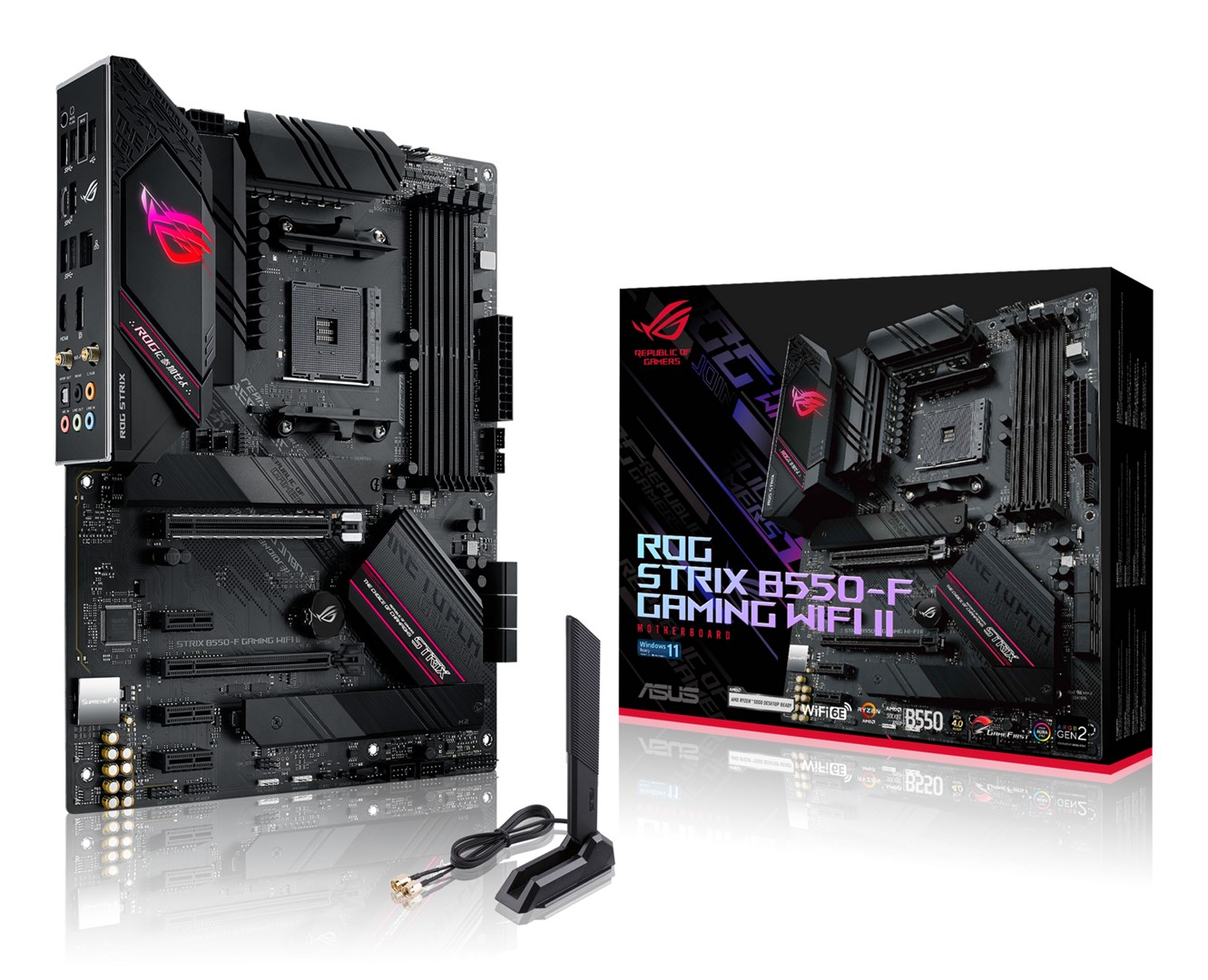

ASUS ROG STRIX B550-F GAMING WIFI II AMD B550 Socket AM4 ATX 90MB19V0-M0EAY0 DDR4

ASUS ROG STRIX B550-F GAMING WIFI II AMD B550 Motherboard

ASUS ROG STRIX B550-F GAMING WIFI II AMD B550 Motherboard has the AM4 processor socket. It also has the AMD B550 chipset.

Characteristics
Component type
Motherboard
Processor socket
AM4
Supported memory type
DDR4
Motherboard chipset
AMD B550
Processor | Supported processor sockets
Socket AM4
Processor | Maximum number of SMP processors
1
Processor | Processor manufacturer
AMD
Processor | Compatible processor series
AMD Ryzen 3000 Series
Graphics | Parallel processing technology support
Not supported
Graphics | On-board graphics card
No
Features | Windows operating systems supported
Windows 10 Education x64, Windows 10 Education, Windows 10 Home, Windows 10 Pro x64, Windows 10 Pro, Windows 10, Windows 10 IOT Core, Windows 10 Enterprise x64, Windows 10 Enterprise, Windows 10 Home x64, Windows 10 IoT Enterprise, Windows 10 x64
Features | Audio output channels
7.1 channels
Features | Motherboard form factor
ATX
Features | Cooling type
Active
Features | Motherboard chipset family
AMD
Features | Product colour
Black
Features | Power source type
ATX
Memory | ECC сompatibility
ECC
Memory | Maximum internal memory
128 GB
Memory | Number of memory slots
4
Memory | Supported memory types
DDR4-SDRAM
Memory | Memory slots type
DIMM
Memory | Supported memory clock speeds
3466, 2400, 2800, 3866, 4400, 4600, 2133, 3200 MHz, 2666, 4133, 4000, 3600, 3000
Weight & dimensions | Width
305 mm
Weight & dimensions | Height
68 mm
Weight & dimensions | Depth
244 mm
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | Bluetooth version
5.2
Network | Wi-Fi standards
Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11b
Network | Ethernet LAN
Yes
Network | Wi-Fi
Yes
Network | Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Network | Bluetooth
Yes
Network | LAN controller
Intel I225-V
Network | Wake-on-LAN ready
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | Thunderbolt headers
1
Internal I/O | Number of chassis fan connectors
3
Internal I/O | 12V power connector
Yes
Internal I/O | Number of SATA III connectors
6
Internal I/O | RGB LED pin header
Yes
Internal I/O | CPU fan connector
Yes
Internal I/O | Peripheral (Molex) power connectors (4-pin)
1
Internal I/O | Number of EATX power connectors
1
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | USB 2.0 connectors
2
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
BIOS | BIOS type
UEFI AMI
Packaging content | Drivers included
Yes
Packaging content | Cables included
SATA
Storage controllers | RAID levels
0, 1, 10
Storage controllers | Number of storage drives supported
8
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | Number of HDDs supported
6
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | S/PDIF out port
Yes
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Rear panel I/O ports | Headphone outputs
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Rear panel I/O ports | HDMI version
2.1
Rear panel I/O ports | Microphone in
Yes
Rear panel I/O ports | DisplayPort version
1.2
Rear panel I/O ports | USB 2.0 ports quantity
2
Expansion slots | PCI Express x1 (Gen 3.x) slots
3
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | PCI Express x16 (Gen 3.x) slots
1
Expansion slots | Number of M.2 (M) slots
2
Other features | Weight
945 g
Logistics data | Harmonized System (HS) code
84733020
Safety warning | Warnings
Dispose of according to local electro-waste regulations., Avoid direct contact with sensitive electronic components., Store away from water and sources of moisture.
