Article: DMC-000014742

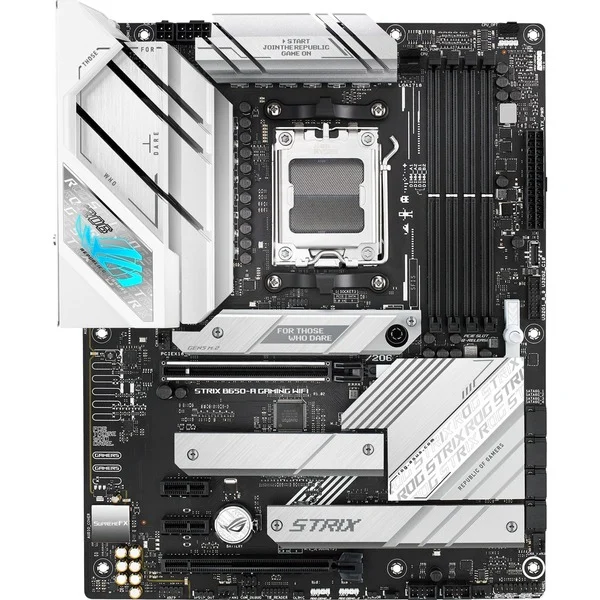

ASUS ROG STRIX B650-A GAMING WIFI Motherboard 90MB1BP0-M0EAY0

ASUS ROG STRIX B650-A GAMING WIFI Motherboard

ASUS ROG STRIX B650-A GAMING WIFI Motherboard has the AM5 processor socket. It also has the B650 chipset.

Characteristics
Component type
Motherboard
Processor socket
AM5
Motherboard chipset
B650
Form factor
ATX
Supported memory type
DDR5
Processor | Supported processor sockets
Socket AM5
Processor | Processor manufacturer
AMD
Processor | Compatible processor series
AMD Ryzen™ 7
Graphics | Parallel processing technology support
Not supported
Graphics | On-board graphics card
No
Features | Product colour
Silver, Black
Features | Audio chip
Realtek ALC4080
Features | Audio output channels
7.1 channels
Features | Motherboard form factor
ATX
Features | Motherboard chipset family
AMD
Features | Windows operating systems supported
Windows 11 x64
Memory | Supported memory clock speeds
5200, 6400 MHz, 6200, 6000, 5600, 5000, 4800, 5800, 5400
Memory | Maximum internal memory
128 GB
Memory | Unbuffered memory
Yes
Memory | Supported memory types
DDR5-SDRAM
Memory | Number of memory slots
4
Memory | Memory slots type
DIMM
Memory | Memory channels
Dual-channel
Memory | ECC сompatibility
ECC & Non-ECC
Weight & dimensions | Width
305 mm
Weight & dimensions | Depth
244 mm
Network | LAN controller
Intel I225-V
Network | Bluetooth
Yes
Network | Wi-Fi standards
802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 5 (802.11ac)
Network | Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Network | Wi-Fi
Yes
Network | Ethernet LAN
Yes
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | Bluetooth version
5.2
Internal I/O | S/PDIF out connector
Yes
Internal I/O | Thunderbolt headers
1
Internal I/O | Front panel audio connector
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | 12V power connector
Yes
Internal I/O | Number of chassis fan connectors
4
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | USB 2.0 connectors
4
Internal I/O | Number of SATA III connectors
4
Internal I/O | Peripheral (Molex) power connectors (4-pin)
1
Internal I/O | CPU fan connector
Yes
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Internal I/O | Number of COM connectors
1
Internal I/O | Chassis intrusion connector
Yes
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | RGB LED pin header
Yes
BIOS | Clear CMOS button
Yes
BIOS | BIOS type
UEFI AMI
Packaging data | Package weight
9 kg
Packaging data | Package depth
265 mm
Packaging data | Package height
71 mm
Packaging data | Package width
280 mm
Packaging content | Cables included
SATA
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | RAID support
Yes
Storage controllers | RAID levels
0, 1, 10
Storage controllers | Number of storage drives supported
7
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | Line-in
Yes
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | USB 2.0 ports quantity
4
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Rear panel I/O ports | Headphone outputs
3
Rear panel I/O ports | Microphone in
Yes
Expansion slots | Number of M.2 (M) slots
3
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Expansion slots | PCI Express x1 (Gen 4.x) slots
2
Safety warning | Warnings
Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.
