Article: DMC-000038645

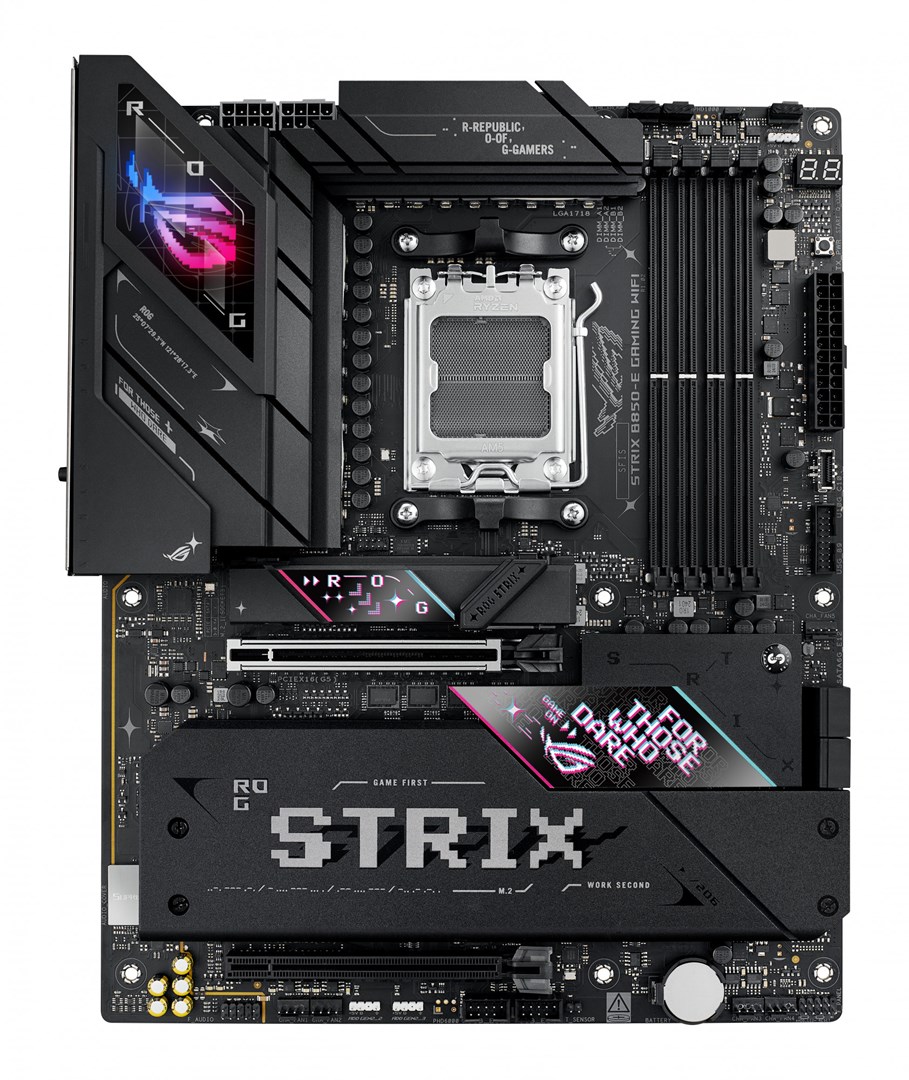

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 socket AM5 ATX motherboard 90MB1J60-M0EAY0 DDR5

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 Motherboard

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 Motherboard has the AM5 processor socket. It also has the AMD B850 chipset.

Characteristics
Component type
Motherboard
Processor socket
AM5
Supported memory type
DDR5
Motherboard chipset
AMD B850
Maximum supported memory speed
8000 MHz
Processor | Compatible processor series
AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Processor | Processor manufacturer
AMD
Processor | Supported processor sockets
Socket AM5
Graphics | Maximum resolution
7680 x 4320 pixels
Graphics | Parallel processing technology support
Not supported
Features | Product colour
Black
Features | Audio chip
Realtek ALC4080
Features | Audio output channels
7.1 channels
Features | Motherboard chipset family
AMD
Features | Motherboard form factor
ATX
Features | Windows operating systems supported
Windows 11
Features | Power source type
ATX
Memory | Memory channels
Dual-channel
Memory | Maximum internal memory
192 GB
Memory | Memory slots type
DIMM
Memory | Supported memory types
DDR5-SDRAM
Memory | Unbuffered memory
Yes
Memory | Supported memory clock speed (max)
8000 MHz
Memory | ECC сompatibility
ECC & Non-ECC
Memory | Number of memory slots
4
Weight & dimensions | Depth
244 mm
Weight & dimensions | Width
305 mm
Network | Wi-Fi
Yes
Network | Bluetooth
Yes
Network | Wi-Fi standards
Wi-Fi 7 (802.11be)
Network | Ethernet LAN
Yes
Network | Ethernet interface type
5 Gigabit Ethernet
Network | Bluetooth version
5.4
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Internal I/O | CPU fan connector
Yes
Internal I/O | Front panel audio connector
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | Number of chassis fan connectors
5
Internal I/O | Number of SATA III connectors
4
Internal I/O | Front panel connector
Yes
Internal I/O | Number of CPU fan connectors
2
Internal I/O | RGB LED pin header
Yes
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | Number of RGB LED pin headers
3
Internal I/O | USB 2.0 connectors
2
Internal I/O | Number of EPS power connectors (8-pin)
2
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Internal I/O | Number of water pump connectors
1
Internal I/O | Number of temperature sensor headers
1
BIOS | BIOS type
UEFI AMI
BIOS | Clear CMOS button
Yes
Packaging data | Package depth
281 mm
Packaging data | Package weight
2.3 kg
Packaging data | Package width
356 mm
Packaging data | Package height
87 mm
Packaging content | Antenna included
Yes
Packaging content | Cables included
SATA
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | Number of HDDs supported
4
Storage controllers | RAID levels
5, 1, 10, 0
Storage controllers | Number of storage drives supported
9
Storage controllers | Supported storage drive types
HDD & SSD
Rear panel I/O ports | Digital audio optical out
1
Rear panel I/O ports | S/PDIF out port
Yes
Rear panel I/O ports | USB4 Gen 3x2 ports quantity
1
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | USB 3.2 Gen 2x2 Type-C ports quantity
1
Rear panel I/O ports | HDMI version
2.1
Rear panel I/O ports | WiFi-AP antenna jack
2
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | Headphone outputs
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
Rear panel I/O ports | USB 2.0 ports quantity
4
Rear panel I/O ports | DisplayPort version
1.4
Rear panel I/O ports | Line-in
Yes
Expansion slots | 2nd M.2 largest key size
22110
Expansion slots | 1st M.2 largest key size
2280
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Expansion slots | Number of M.2 (M) slots
5
Expansion slots | 1st M.2 highest PCI Express generation
5.0
Expansion slots | 5th M.2 highest PCI Express generation
4.0
Expansion slots | 4th M.2 largest key size
2280
Expansion slots | 2nd M.2 highest PCI Express generation
5.0
Expansion slots | 3rd M.2 highest PCI Express generation
5.0
Expansion slots | 5th M.2 largest key size
2280
Expansion slots | 3rd M.2 largest key size
2280
Expansion slots | 4th M.2 highest PCI Express generation
4.0
Other features | Quick installation guide
Yes
Safety warning | Warnings
Do not disassemble to avoid damage to internal components and loss of warranty.
