Article: DMC-000038638

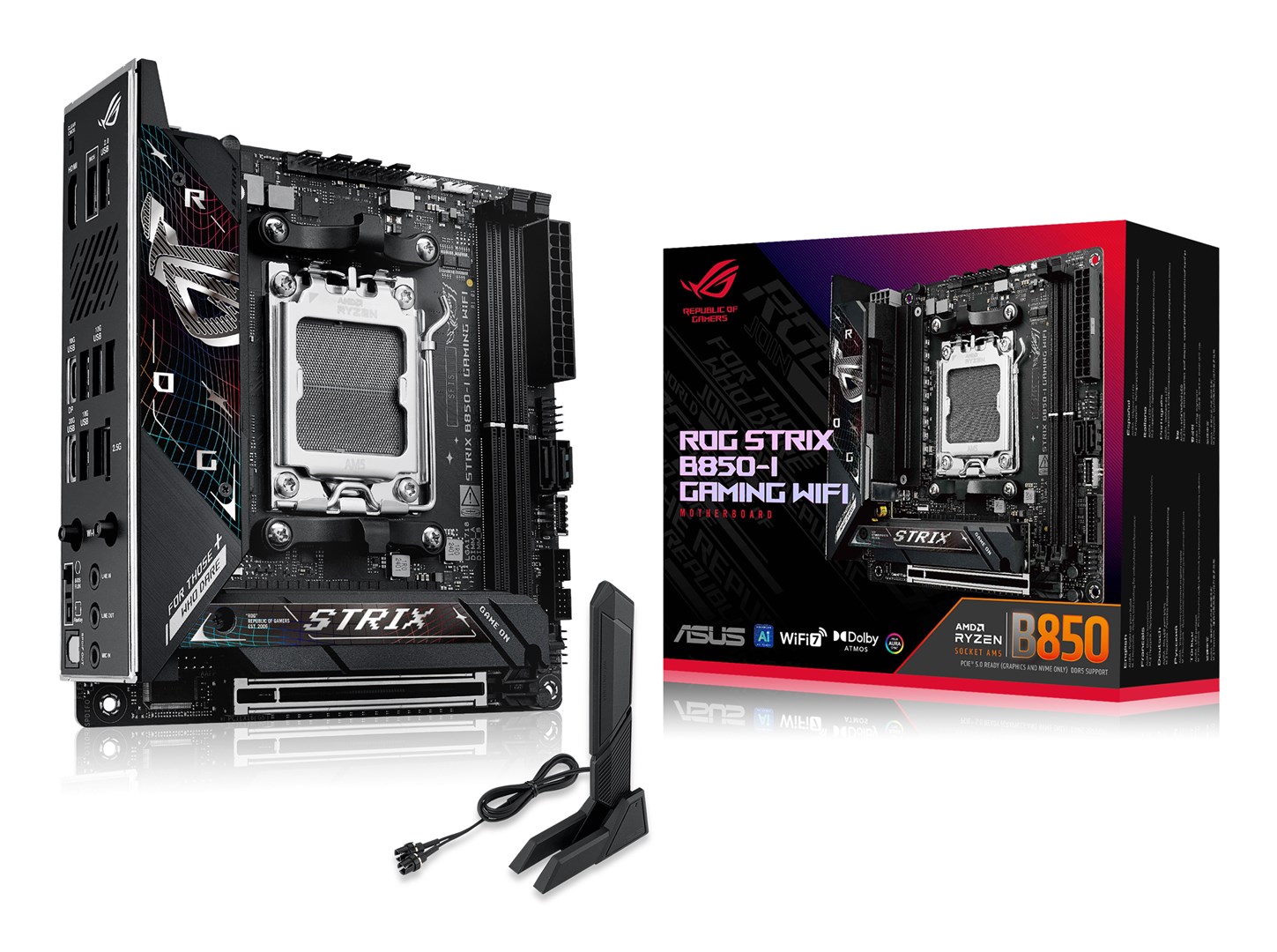

ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX 90MB1K30-M0EAY0 DDR5

ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Motherboard

ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Motherboard has the AM5 processor socket. It also has the AMD B850 chipset.

Characteristics
Component type
Motherboard
Processor socket
AM5
Supported memory type
DDR5
Motherboard chipset
AMD B850
Maximum supported memory speed
8400 MHz
Processor | Compatible processor series
AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor | Processor manufacturer
AMD
Processor | Supported processor sockets
Socket AM5
Graphics | On-board graphics card
No
Graphics | Maximum resolution
4096 x 2160 pixels
Graphics | Parallel processing technology support
Not supported
Features | Audio output channels
7.1 channels
Features | Motherboard form factor
mini ITX
Features | Windows operating systems supported
Windows 11
Features | Audio chip
Realtek ALC4080
Features | Power source type
ATX
Features | Motherboard chipset family
AMD
Features | Product colour
Black
Memory | ECC сompatibility
ECC & Non-ECC
Memory | Supported memory clock speed (max)
8400 MHz
Memory | Supported memory types
DDR5-SDRAM
Memory | Memory slots type
DIMM
Memory | Number of memory slots
2
Memory | Memory channels
Dual-channel
Memory | Maximum internal memory
96 GB
Memory | Unbuffered memory
Yes
Weight & dimensions | Width
170 mm
Weight & dimensions | Depth
170 mm
Network | Wi-Fi standards
Wi-Fi 7 (802.11be)
Network | Bluetooth version
5.4
Network | Wi-Fi
Yes
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | Ethernet LAN
Yes
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network | Bluetooth
Yes
Internal I/O | Number of water pump connectors
1
Internal I/O | Number of temperature sensor headers
1
Internal I/O | Number of EPS power connectors (8-pin)
1
Internal I/O | Number of CPU fan connectors
1
Internal I/O | Number of RGB LED pin headers
2
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | RGB LED pin header
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | Front panel audio connector
Yes
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Internal I/O | Number of SATA III connectors
2
Internal I/O | CPU fan connector
Yes
Internal I/O | Number of chassis fan connectors
4
Internal I/O | USB 2.0 connectors
1
Internal I/O | Thunderbolt headers
1
Internal I/O | Front panel connector
Yes
Internal I/O | ATX Power connector (24-pin)
Yes
BIOS | Clear CMOS button
Yes
BIOS | BIOS type
UEFI AMI
Packaging data | Package width
226 mm
Packaging data | Package weight
1.06 kg
Packaging data | Package depth
185 mm
Packaging data | Package height
94 mm
Packaging content | Antenna included
Yes
Packaging content | Cables included
SATA
Storage controllers | Number of storage drives supported
4
Storage controllers | Number of HDDs supported
2
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | Supported storage drive types
HDD & SSD
Rear panel I/O ports | HDMI version
2.1
Rear panel I/O ports | USB 3.2 Gen 2x2 Type-C ports quantity
1
Rear panel I/O ports | Line-in
Yes
Rear panel I/O ports | WiFi-AP antenna jack
2
Rear panel I/O ports | Headphone outputs
1
Rear panel I/O ports | Digital audio optical out
1
Rear panel I/O ports | USB 2.0 ports quantity
2
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | S/PDIF out port
Yes
Expansion slots | 2nd M.2 largest key size
2280
Expansion slots | 1st M.2 largest key size
2280
Expansion slots | 2nd M.2 highest PCI Express generation
5.0
Expansion slots | 1st M.2 highest PCI Express generation
5.0
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Expansion slots | Number of M.2 (M) slots
2
Other features | Weight
1.06 kg
Other features | Quick installation guide
Yes
Safety warning | Warnings
Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.
