Article: DMC-000030791

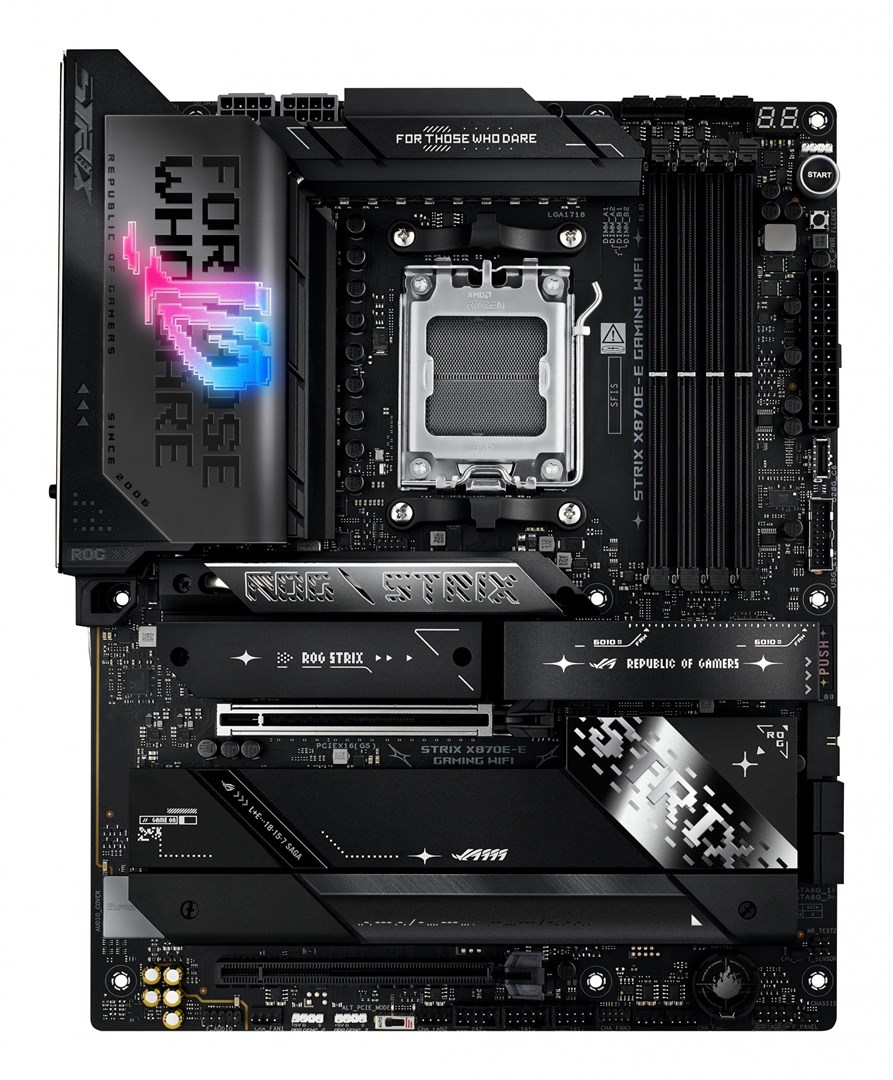

ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX 90MB1IB0-M0EAY0

ASUS ROG STRIX X870E-E GAMING WIFI Motherboard

ASUS ROG STRIX X870E-E GAMING WIFI Motherboard has the AM5 processor socket. It also has the AMD X870E chipset.

Characteristics
Component type
Motherboard
Processor socket
AM5
Supported memory type
DDR5
Motherboard chipset
AMD X870E
Processor | Processor manufacturer
AMD
Processor | Supported processor sockets
Socket AM5
Graphics | On-board graphics card
No
Graphics | Parallel processing technology support
Not supported
Features | Motherboard chipset family
AMD
Features | Product colour
Black
Features | Windows operating systems supported
Windows 11 x64
Features | Audio chip
Realtek ALC4080
Features | Motherboard form factor
ATX
Features | Audio output channels
7.1 channels
Memory | Memory slots type
DIMM
Memory | Memory channels
Dual-channel
Memory | Number of memory slots
4
Memory | Supported memory types
DDR5-SDRAM
Memory | ECC сompatibility
ECC & Non-ECC
Memory | Maximum internal memory
192 GB
Memory | Unbuffered memory
Yes
Weight & dimensions | Depth
244 mm
Weight & dimensions | Width
305 mm
Weight & dimensions | Height
50 mm
Network | Bluetooth version
5.4
Network | Ethernet LAN
Yes
Network | Ethernet interface type
5 Gigabit Ethernet
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network | Wi-Fi standards
Wi-Fi 7 (802.11be)
Network | Wi-Fi
Yes
Network | Bluetooth
Yes
Internal I/O | 12V power connector
Yes
Internal I/O | USB 3.2 Gen 2x2 connectors
1
Internal I/O | CPU fan connector
Yes
Internal I/O | Number of chassis fan connectors
5
Internal I/O | USB 2.0 connectors
3
Internal I/O | Number of SATA III connectors
4
Internal I/O | Front panel audio connector
Yes
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Internal I/O | ATX Power connector (24-pin)
Yes
BIOS | BIOS type
UEFI AMI
BIOS | Clear CMOS button
Yes
Packaging data | Package height
87 mm
Packaging data | Package depth
281 mm
Packaging data | Package width
365 mm
Packaging data | Package weight
3.02 kg
Packaging content | Cables included
SATA
Storage controllers | Number of HDDs supported
4
Storage controllers | Number of storage drives supported
9
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | RAID levels
0, 10, 1, 5
Storage controllers | RAID support
Yes
Rear panel I/O ports | WiFi-AP antenna jack
1
Rear panel I/O ports | USB4 Gen 2x2 ports quantity
2
Rear panel I/O ports | USB 3.2 Gen 2x2 Type-C ports quantity
1
Rear panel I/O ports | Headphone outputs
1
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
9
Rear panel I/O ports | Microphone in
Yes
Rear panel I/O ports | S/PDIF out port
Yes
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Expansion slots | Number of M.2 (M) slots
5
Other features | Weight
2.06 kg
Safety warning | Warnings
Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste.
