Article: DMC-000046124

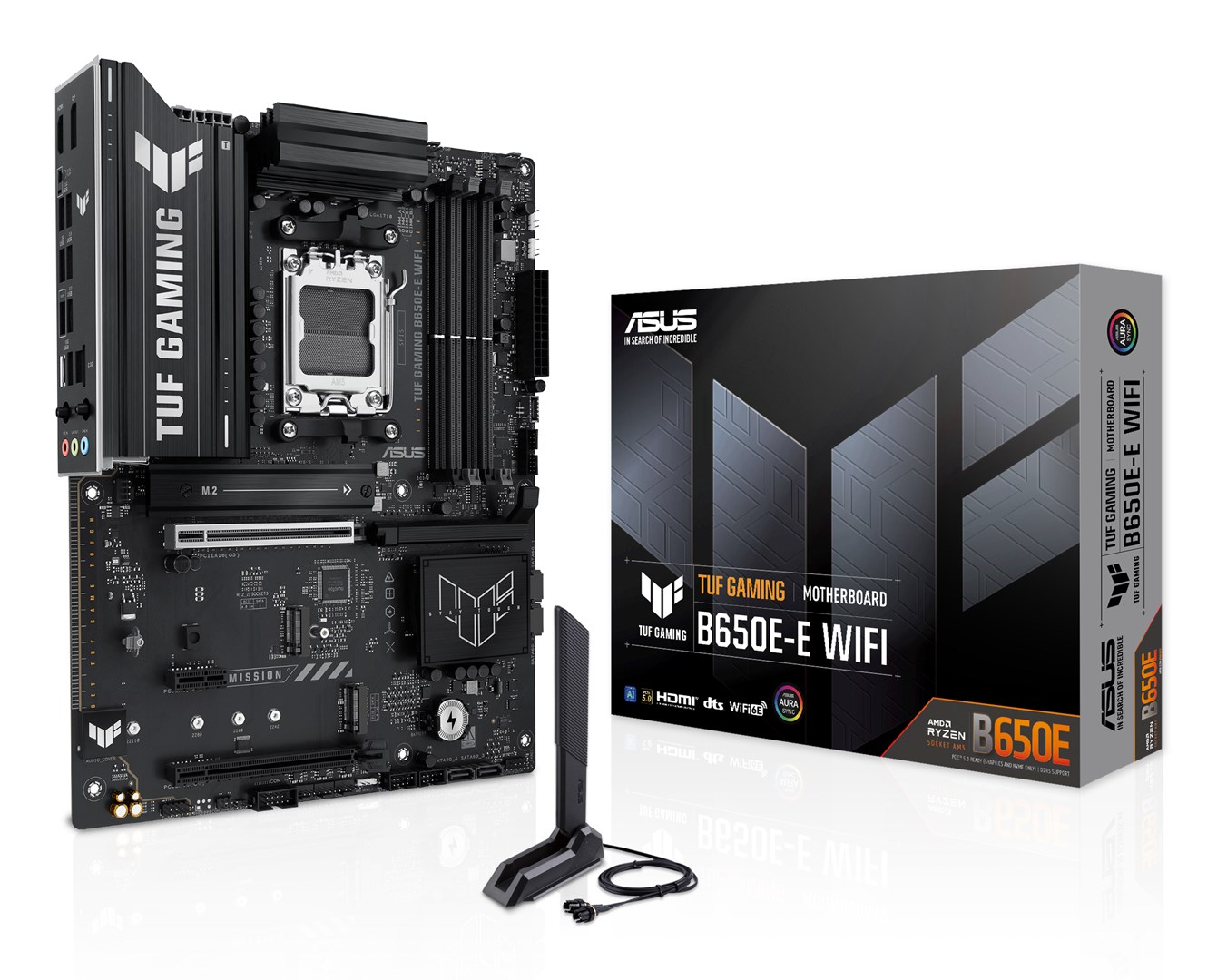

ASUS TUF GAMING B650E-E WIFI AMD B650 Socket AM5 ATX 90MB1LT0-M0EAY0 DDR5

ASUS TUF GAMING B650E-E WIFI Motherboard

ASUS TUF GAMING B650E-E WIFI Motherboard has the AM5 processor socket. It also has the AMD B650 chipset.

Characteristics
Component type
Motherboard
Processor socket
AM5
Supported memory type
DDR5
Motherboard chipset
AMD B650
Processor | Compatible processor series
AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor | Processor manufacturer
AMD
Processor | Supported processor sockets
Socket AM5
Graphics | On-board graphics card
No
Graphics | Parallel processing technology support
Not supported
Features | Audio output channels
7.1 channels
Features | Motherboard form factor
ATX
Features | Windows operating systems supported
Windows 10 x64, Windows 11
Features | Product colour
Black
Features | Cooling type
Passive
Features | Motherboard chipset family
AMD
Memory | ECC сompatibility
ECC & Non-ECC
Memory | Supported memory types
DDR5-SDRAM
Memory | Memory slots type
DIMM
Memory | Number of memory slots
4
Memory | Memory channels
Dual-channel
Memory | Unbuffered memory
Yes
Memory | Maximum internal memory
256 GB
Weight & dimensions | Depth
244 mm
Weight & dimensions | Width
305 mm
Network | Wi-Fi
Yes
Network | Ethernet LAN
Yes
Network | Bluetooth version
5.3
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | Wi-Fi standards
802.11b, Wi-Fi 6E (802.11ax), 802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11n
Network | Bluetooth
Yes
Network | Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Internal I/O | Number of RGB LED pin headers
3
Internal I/O | 12V power connector
Yes
Internal I/O | RGB LED pin header
Yes
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | Front panel audio connector
Yes
Internal I/O | Chassis intrusion connector
Yes
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | Front panel connector
Yes
Internal I/O | Peripheral (Molex) power connectors (4-pin)
1
Internal I/O | S/PDIF out connector
Yes
Internal I/O | Number of COM connectors
1
Internal I/O | CPU fan connector
Yes
Internal I/O | Number of SATA III connectors
4
Internal I/O | USB 2.0 connectors
2
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | Number of chassis fan connectors
4
BIOS | BIOS type
UEFI AMI
Packaging content | Screws included
Yes
Packaging content | Antenna included
Yes
Packaging content | Cables included
SATA
Storage controllers | Number of HDDs supported
4
Storage controllers | RAID support
Yes
Storage controllers | RAID levels
1, 0, 10
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | Supported storage drive types
HDD & SSD
Rear panel I/O ports | WiFi-AP antenna jack
1
Rear panel I/O ports | Line-in
Yes
Rear panel I/O ports | Number of audio jack connectors
5
Rear panel I/O ports | USB 2.0 ports quantity
3
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Expansion slots | 2nd M.2 highest PCI Express generation
4.0
Expansion slots | 2nd M.2 largest key size
2280
Expansion slots | 1st M.2 largest key size
2280
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | 3rd M.2 highest PCI Express generation
4.0
Expansion slots | 1st M.2 highest PCI Express generation
5.0
Expansion slots | 3rd M.2 largest key size
22110
Expansion slots | PCI Express x1 (Gen 4.x) slots
1
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Expansion slots | Number of M.2 (M) slots
3
