Article: DMC-000046134

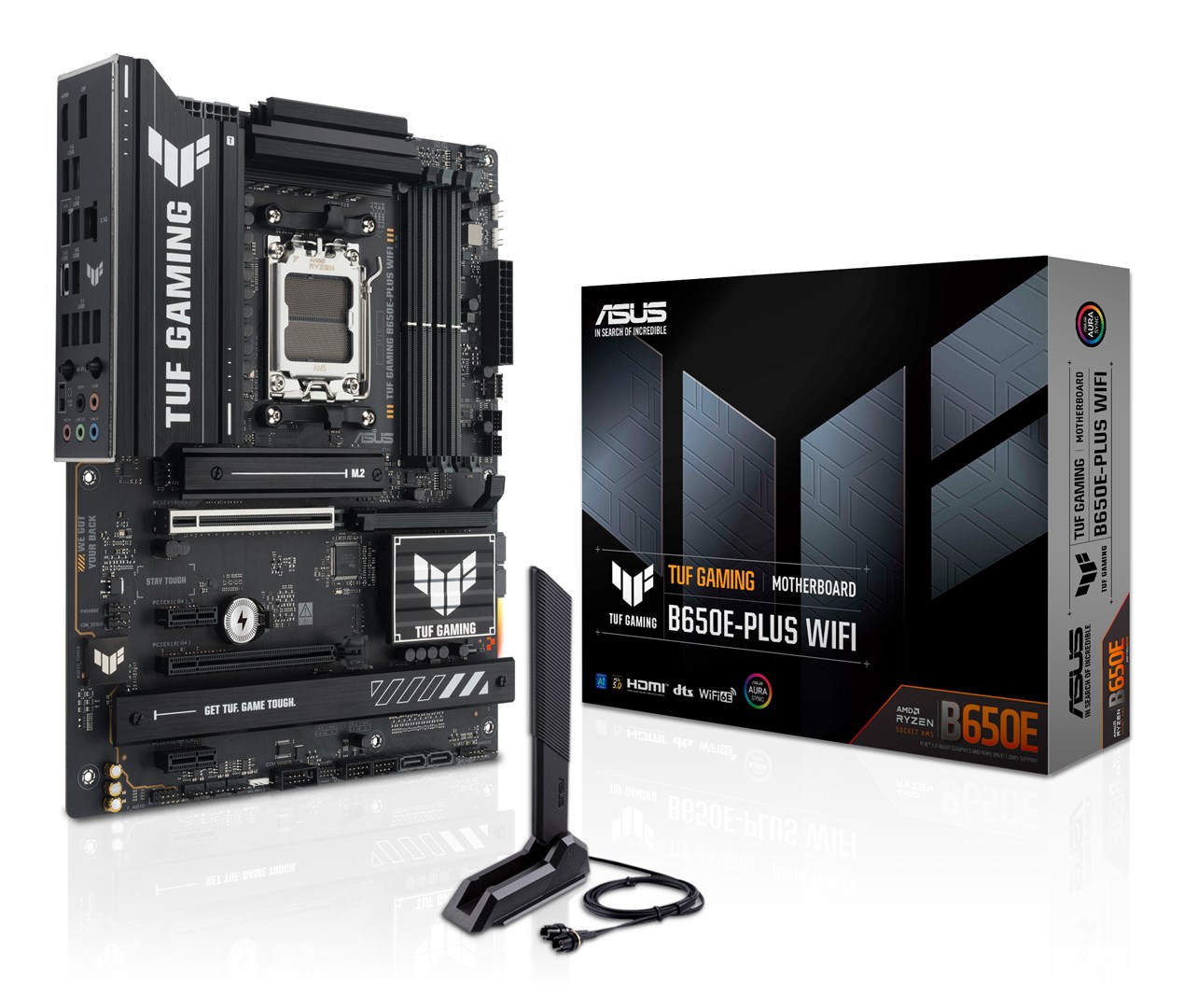

ASUS TUF GAMING B650E-PLUS WIFI AMD B650 Socket AM5 ATX 90MB1M20-M0EAY0

ASUS TUF GAMING B650E-PLUS WIFI Motherboard

ASUS TUF GAMING B650E-PLUS WIFI Motherboard has the AM5 processor socket. It also has the AMD B650 chipset.

Characteristics
Component type
Motherboard
Processor socket
AM5
Supported memory type
DDR5
Motherboard chipset
AMD B650
Processor | Compatible processor series
AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
Processor | Processor manufacturer
AMD
Processor | Supported processor sockets
Socket AM5
Graphics | On-board graphics card
No
Graphics | Parallel processing technology support
Not supported
Features | Audio output channels
7.1 channels
Features | Motherboard form factor
ATX
Features | Windows operating systems supported
Windows 10 x64, Windows 11
Features | Audio chip
Realtek ALC1220P
Features | Cooling type
Passive
Features | Product colour
Black
Features | Motherboard chipset family
AMD
Memory | Unbuffered memory
Yes
Memory | Maximum internal memory
256 GB
Memory | Memory channels
Dual-channel
Memory | Supported memory types
DDR5-SDRAM
Memory | Memory slots type
DIMM
Memory | Number of memory slots
4
Memory | ECC сompatibility
ECC & Non-ECC
Weight & dimensions | Width
305 mm
Weight & dimensions | Depth
244 mm
Network | Bluetooth
Yes
Network | Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Network | Wi-Fi standards
Wi-Fi 6E (802.11ax)
Network | Wi-Fi
Yes
Network | Ethernet LAN
Yes
Network | Bluetooth version
5.3
Network | Ethernet interface type
2.5 Gigabit Ethernet
Internal I/O | Number of COM connectors
1
Internal I/O | Front panel audio connector
Yes
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | Thunderbolt headers
1
Internal I/O | Number of chassis fan connectors
4
Internal I/O | USB 2.0 connectors
2
Internal I/O | Number of SATA III connectors
4
Internal I/O | Chassis intrusion connector
Yes
Internal I/O | Front panel connector
Yes
Internal I/O | CPU fan connector
Yes
Internal I/O | 12V power connector
Yes
Internal I/O | Number of CPU fan connectors
1
BIOS | BIOS type
UEFI AMI
Packaging data | Package weight
1.39 kg
Packaging data | Package height
68 mm
Packaging data | Package depth
273 mm
Packaging data | Package width
353 mm
Packaging content | Cables included
SATA
Packaging content | Antenna included
Yes
Storage controllers | RAID levels
5, 0, 10, 1
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | Number of HDDs supported
4
Storage controllers | Number of storage drives supported
7
Storage controllers | RAID support
Yes
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | Microphone in
Yes
Rear panel I/O ports | Line-in
Yes
Rear panel I/O ports | USB 2.0 ports quantity
6
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | WiFi-AP antenna jack
1
Rear panel I/O ports | USB 3.2 Gen 2x2 Type-C ports quantity
1
Expansion slots | Number of M.2 (M) slots
3
Expansion slots | 2nd M.2 highest PCI Express generation
4.0
Expansion slots | 3rd M.2 largest key size
2280
Expansion slots | 2nd M.2 largest key size
22110
Expansion slots | 3rd M.2 highest PCI Express generation
4.0
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Expansion slots | PCI Express x1 (Gen 4.x) slots
2
Expansion slots | 1st M.2 highest PCI Express generation
5.0
Expansion slots | 1st M.2 largest key size
2280
