Article: DMC-000079204

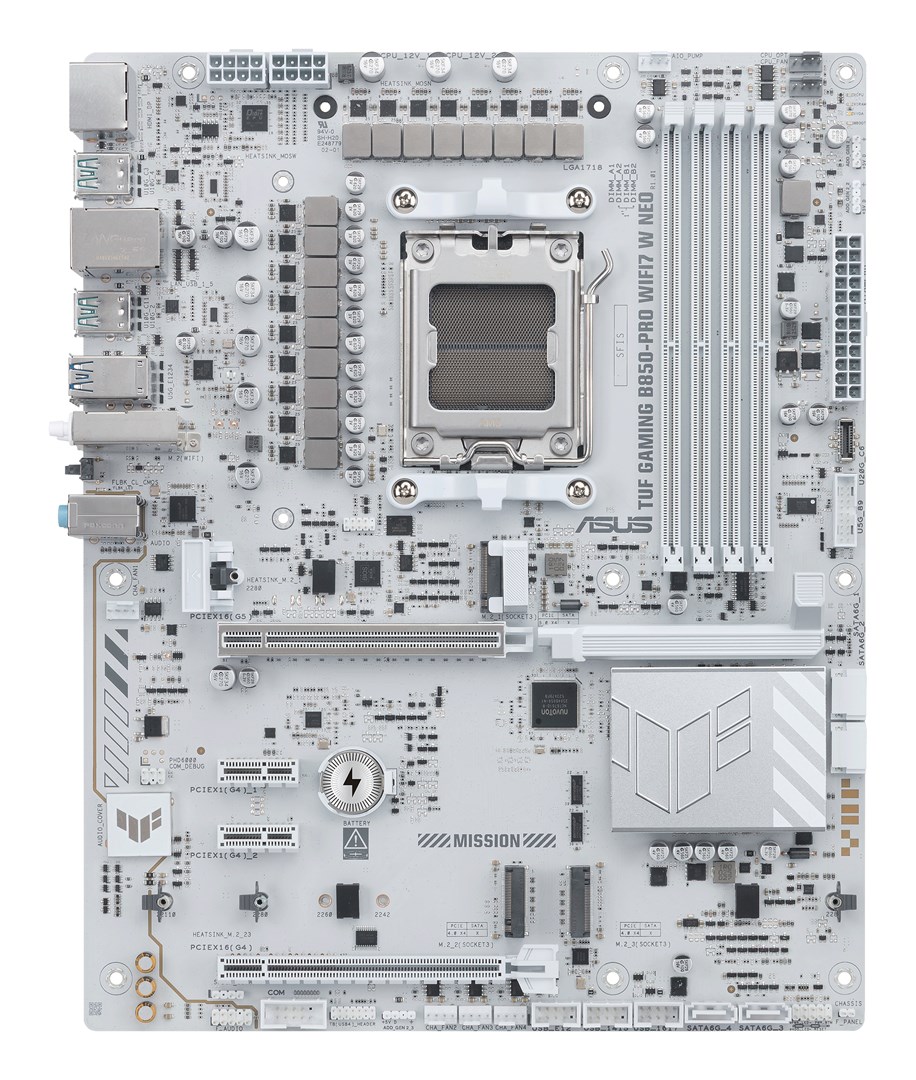

ASUS TUF GAMING B850-PRO WIFI7 W NEO AMD B850 Socket AM5 ATX 90MB1NW0-M0EAY0 Motherboard

ASUS TUF GAMING B850-PRO WIFI7 W NEO AMD B850 Socket AM5 ATX 90MB1NW0-M0EAY0 Motherboard

The ASUS TUF GAMING B850-PRO WIFI7 W NEO AMD B850 Socket AM5 ATX 90MB1NW0-M0EAY0 Motherboard uses the AMD B850 chipset and AM5 processor socket. It supports DDR5 memory.

Characteristics
Processor socket
AM5
Maximum supported memory speed
9000 MHz
Supported memory type
DDR5
Motherboard chipset
AMD B850
Component type
Motherboard
Processor | Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor | Processor manufacturer
AMD
Graphics | On-board graphics card
No
Graphics | Parallel processing technology support
Not supported
Features | Motherboard form factor
ATX
Features | Motherboard chipset family
AMD
Features | Product colour
White
Features | Audio output channels
7.1 channels
Features | Audio chip
Realtek ALC1220P
Features | Windows operating systems supported
Windows 11
Memory | Memory slots type
DIMM
Memory | Supported memory types
DDR5-SDRAM
Memory | Memory channels
Dual-channel
Memory | Number of memory slots
4
Memory | Supported memory clock speed (max)
9000 MHz
Memory | ECC сompatibility
ECC & Non-ECC
Memory | Maximum internal memory
256 GB
Weight & dimensions | Height
50 mm
Weight & dimensions | Depth
244 mm
Weight & dimensions | Width
305 mm
Network | Wi-Fi
Yes
Network | Wi-Fi standards
Wi-Fi 7 (802.11be)
Network | WLAN controller model
Realtek RTL8922AE
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | Ethernet LAN
Yes
Network | Bluetooth version
5.4
Network | Bluetooth
Yes
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Internal I/O | 12V power connector
Yes
Internal I/O | USB 3.2 Gen 2x2 connectors
1
Internal I/O | Number of CPU fan connectors
1
Internal I/O | Number of water pump connectors
1
Internal I/O | Number of SATA III connectors
4
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | Thunderbolt headers
1
Internal I/O | Front panel audio connector
Yes
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Internal I/O | S/PDIF out connector
Yes
Internal I/O | USB 2.0 connectors
3
Internal I/O | Number of COM connectors
1
Internal I/O | Chassis intrusion connector
Yes
Internal I/O | CPU fan connector
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | Number of chassis fan connectors
4
BIOS | BIOS type
UEFI AMI
BIOS | Clear CMOS button
Yes
Packaging data | Package weight
1.94 kg
Packaging data | Package depth
273 mm
Packaging data | Package width
353 mm
Packaging data | Package height
68 mm
Storage controllers | Number of HDDs supported
4
Storage controllers | Number of storage drives supported
7
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | RAID levels
1, 10, 5, 0
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | RAID support
Yes
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | USB 2.0 ports quantity
2
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Expansion slots | PCI Express x1 (Gen 4.x) slots
2
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Expansion slots | 1st M.2 largest key size
2280
Expansion slots | Number of M.2 (M) slots
3
Other features | Weight
1.35 kg
