Article: DMC-000045336

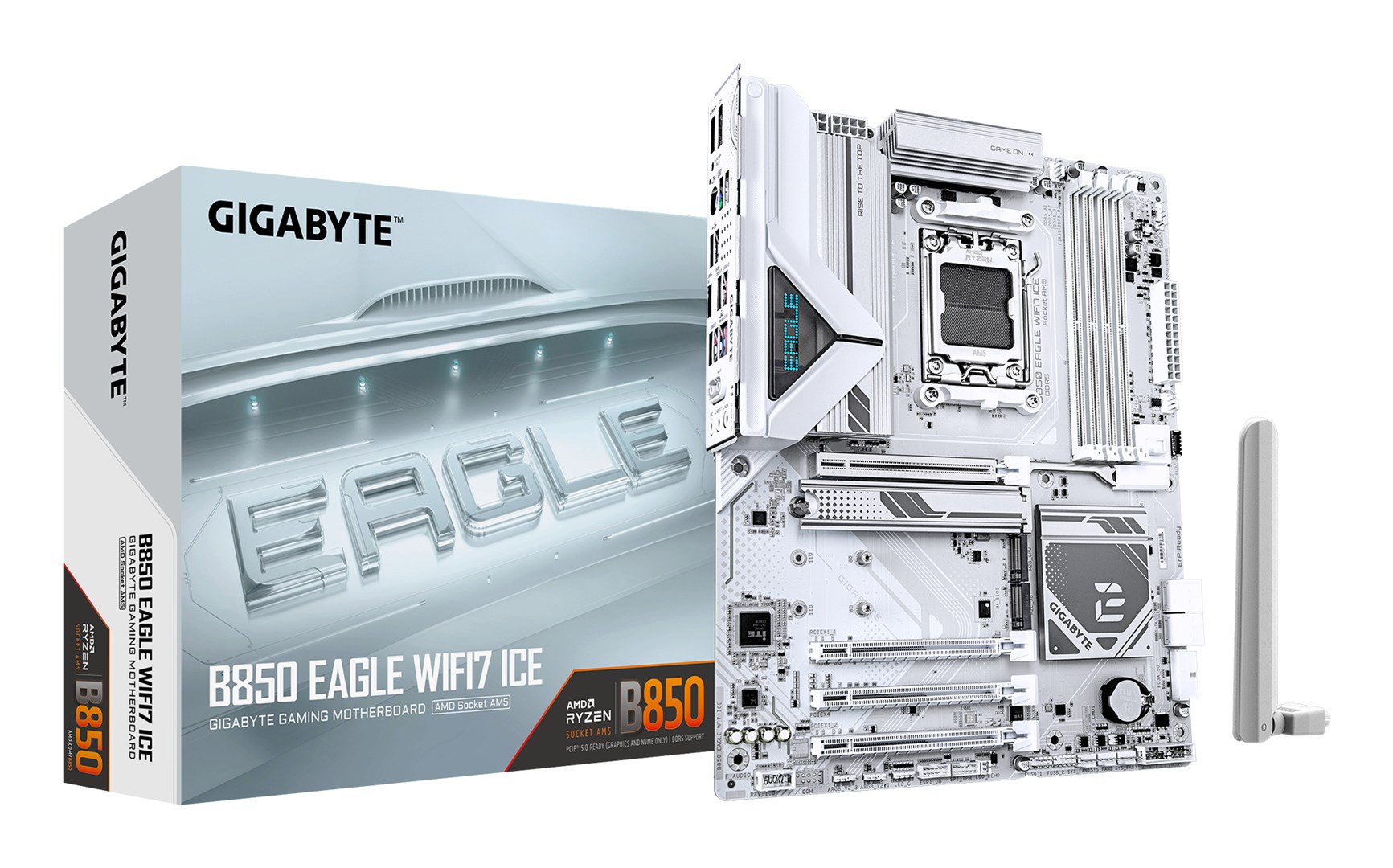

GIGABYTE B850 EAGLE WIFI7 ICE Motherboard B850 EAGLE WF7 ICE DDR5 AMD B850 AM5

GIGABYTE B850 EAGLE WIFI7 ICE Motherboard

GIGABYTE B850 EAGLE WIFI7 ICE Motherboard has the AM5 processor socket. It also has the AMD B850 chipset.

Characteristics
Component type
Motherboard
Processor socket
AM5
Supported memory type
DDR5
Motherboard chipset
AMD B850
Maximum supported memory speed
8200 MHz
Processor | Supported processor sockets
Socket AM5
Processor | Compatible processor series
AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series
Processor | Processor manufacturer
AMD
Graphics | Maximum resolution
4096 x 2160 pixels
Graphics | DirectX version
12.0
Graphics | HDCP
Yes
Graphics | Parallel processing technology support
Not supported
Graphics | On-board graphics card
No
Features | PC health monitoring
Fan, Voltage, Water cooling, Temperature
Features | Motherboard form factor
ATX
Features | Audio output channels
7.1 channels
Features | Windows operating systems supported
Windows 11 x64
Features | Cooling type
Passive
Features | Power source type
ATX
Features | Audio chip
Realtek ALC897
Features | Product colour
White
Features | Motherboard chipset family
AMD
Memory | Unbuffered memory
Yes
Memory | Supported memory clock speeds
6400, 5200, 6000, 7600, 7800, 7400, 8000, 4800, 6800, 6600, 6200, 4400, 7950, 7900, 7000, 8200 MHz, 5800, 5600, 7200
Memory | Maximum internal memory
256 GB
Memory | Maximum internal memory per slot
64 GB
Memory | Memory slots type
DIMM
Memory | Supported memory clock speed (max)
8200 MHz
Memory | Supported memory types
DDR5-SDRAM
Memory | Memory channels
Dual-channel
Memory | ECC сompatibility
Non-ECC
Memory | Number of memory slots
4
Weight & dimensions | Width
305 mm
Weight & dimensions | Height
35 mm
Weight & dimensions | Depth
244 mm
Network | Bluetooth
Yes
Network | LAN controller
Realtek RTL8125
Network | WLAN controller model
Realtek RTL8922AE
Network | Ethernet LAN
Yes
Network | Wi-Fi standards
Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11g, 802.11b, 802.11a, Wi-Fi 6 (802.11ax)
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network | Bluetooth version
5.4
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | Wi-Fi
Yes
Internal I/O | USB 2.0 connectors
2
Internal I/O | Peripheral (Molex) power connectors (4-pin)
1
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Internal I/O | Number of SATA III connectors
4
Internal I/O | Front panel audio connector
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | Number of chassis fan connectors
4
Internal I/O | TPM connector
Yes
Internal I/O | CPU fan connector
Yes
Internal I/O | Front panel connector
Yes
Internal I/O | Number of water pump connectors
2
Internal I/O | 12V power connector
Yes
Internal I/O | Number of EPS power connectors (8-pin)
1
Internal I/O | Number of CPU fan connectors
2
Internal I/O | Number of RGB LED pin headers
4
Internal I/O | RGB LED pin header
Yes
BIOS | BIOS type
UEFI AMI
BIOS | Desktop Management Interface (DMI) version
2.7
BIOS | Clear CMOS jumper
Yes
Packaging data | Package width
335 mm
Packaging data | Package weight
1.89 kg
Packaging data | Package depth
270 mm
Packaging data | Package height
80 mm
Packaging content | Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Packaging content | Screws included
Yes
Packaging content | Antenna included
Yes
Packaging content | Batteries included
Yes
Storage controllers | Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | RAID levels
10, 0, 1
Storage controllers | Number of HDDs supported
4
Storage controllers | Number of storage drives supported
7
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | USB 2.0 ports quantity
4
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | DisplayPort version
1.4
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | HDMI version
1.4
Rear panel I/O ports | WiFi-AP antenna jack
2
Rear panel I/O ports | Headphone outputs
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Rear panel I/O ports | PS/2 ports quantity
1
Rear panel I/O ports | Microphone in
Yes
Rear panel I/O ports | Line-in
Yes
Expansion slots | Number of M.2 (M) slots
3
Expansion slots | PCI Express x16 (Gen 3.x) slots
2
Expansion slots | 2nd M.2 highest PCI Express generation
4.0
Expansion slots | 2nd M.2 largest key size
22110
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | 1st M.2 highest PCI Express generation
5.0
Expansion slots | 1st M.2 largest key size
22110
Expansion slots | 3rd M.2 highest PCI Express generation
4.0
