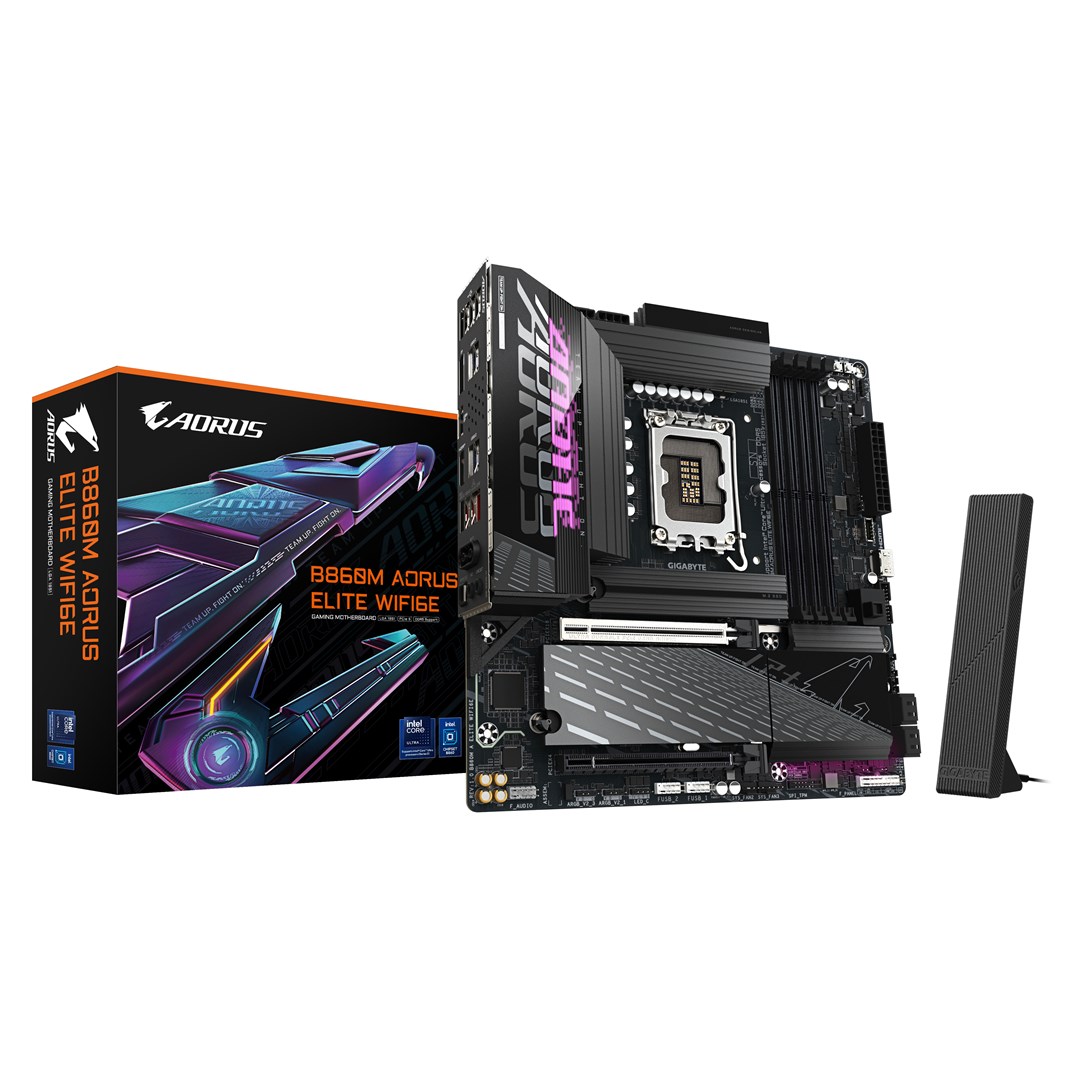

GIGABYTE Product B860M A ELITE WIFI6E

GIGABYTE B860M A ELITE WIFI6E Motherboard

A motherboard for assembling or upgrading a compatible desktop computer. It brings the main components together and provides the foundation for a well-planned system build.

Characteristics
Component type
Motherboard
Processor socket
1851
Motherboard chipset
B860
Supported memory type
DDR5
Maximum supported memory speed
9200 MHz
Processor | Compatible processor series
Intel Core Ultra (Series 2), Intel® Core™ Ultra (Series 1)
Processor | Supported processor sockets
LGA 1851
Processor | Processor manufacturer
Intel
Graphics | On-board graphics card
No
Graphics | Parallel processing technology support
Not supported
Graphics | HDCP
Yes
Graphics | DirectX version
12.0
Graphics | Maximum resolution
4096 x 2160 pixels
Features | Cooling type
Passive
Features | Windows operating systems supported
Windows 11 x64
Features | Power source type
ATX
Features | Audio output channels
7.1 channels
Features | Product colour
Black
Features | Audio chip
Realtek ALC897
Features | Motherboard chipset family
Intel
Features | Motherboard form factor
micro ATX
Features | PC health monitoring
Water cooling, Voltage, Temperature, Fan
Memory | Supported memory types
DDR5-SDRAM
Memory | Memory slots type
DIMM
Memory | Memory channels
Dual-channel
Memory | Number of memory slots
4
Memory | Maximum internal memory per slot
64 GB
Memory | Supported memory clock speed (max)
9200 MHz
Memory | ECC сompatibility
ECC & Non-ECC
Memory | Maximum internal memory
256 GB
Memory | Supported memory clock speeds
9200 MHz, 6400, 5600
Memory | Unbuffered memory
Yes
Weight & dimensions | Width
244 mm
Weight & dimensions | Depth
244 mm
Weight & dimensions | Height
35 mm
Network | Ethernet LAN
Yes
Network | Wi-Fi
Yes
Network | Wi-Fi standards
Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), 802.11g
Network | Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | WLAN controller model
Intel Wi-Fi 6E AX211
Network | Bluetooth version
5.3
Network | LAN controller
Realtek RTL8125
Network | Bluetooth
Yes
Internal I/O | Number of chassis fan connectors
4
Internal I/O | Front panel audio connector
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | RGB LED pin header
Yes
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | TPM connector
Yes
Internal I/O | Number of SATA III connectors
4
Internal I/O | CPU fan connector
Yes
Internal I/O | Front panel connector
Yes
Internal I/O | Number of water pump connectors
2
Internal I/O | Number of RGB LED pin headers
4
Internal I/O | Thunderbolt headers
2
Internal I/O | Number of CPU fan connectors
2
Internal I/O | Number of EPS power connectors (8-pin)
2
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Internal I/O | USB 2.0 connectors
2
BIOS | Clear CMOS jumper
Yes
BIOS | Desktop Management Interface (DMI) version
2.7
BIOS | BIOS type
UEFI AMI
Packaging data | Package width
270 mm
Packaging data | Package height
68 mm
Packaging data | Package weight
1.89 kg
Packaging data | Package depth
268 mm
Packaging content | Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Packaging content | Antenna included
Yes
Packaging content | Batteries included
Yes
Packaging content | Screws included
Yes
Storage controllers | RAID levels
5, 0, 1, 10
Storage controllers | RAID support
Yes
Storage controllers | Number of HDDs supported
4
Storage controllers | Number of storage drives supported
7
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | Supported storage drive types
HDD & SSD
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Rear panel I/O ports | Digital audio optical out
1
Rear panel I/O ports | Line-in
Yes
Rear panel I/O ports | HDMI version
2.1
Rear panel I/O ports | WiFi-AP antenna jack
2
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | USB 2.0 ports quantity
4
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Rear panel I/O ports | Headphone outputs
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | USB4 Gen 2x2 ports quantity
1
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | S/PDIF out port
Yes
Rear panel I/O ports | DisplayPort version
2.1
Expansion slots | Number of M.2 (M) slots
3
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Expansion slots | 1st M.2 highest PCI Express generation
5.0
Expansion slots | 1st M.2 largest key size
2280
Expansion slots | 2nd M.2 largest key size
2580
Expansion slots | 2nd M.2 highest PCI Express generation
4.0
Expansion slots | 3rd M.2 largest key size
25110
