Article: DMC-000030816

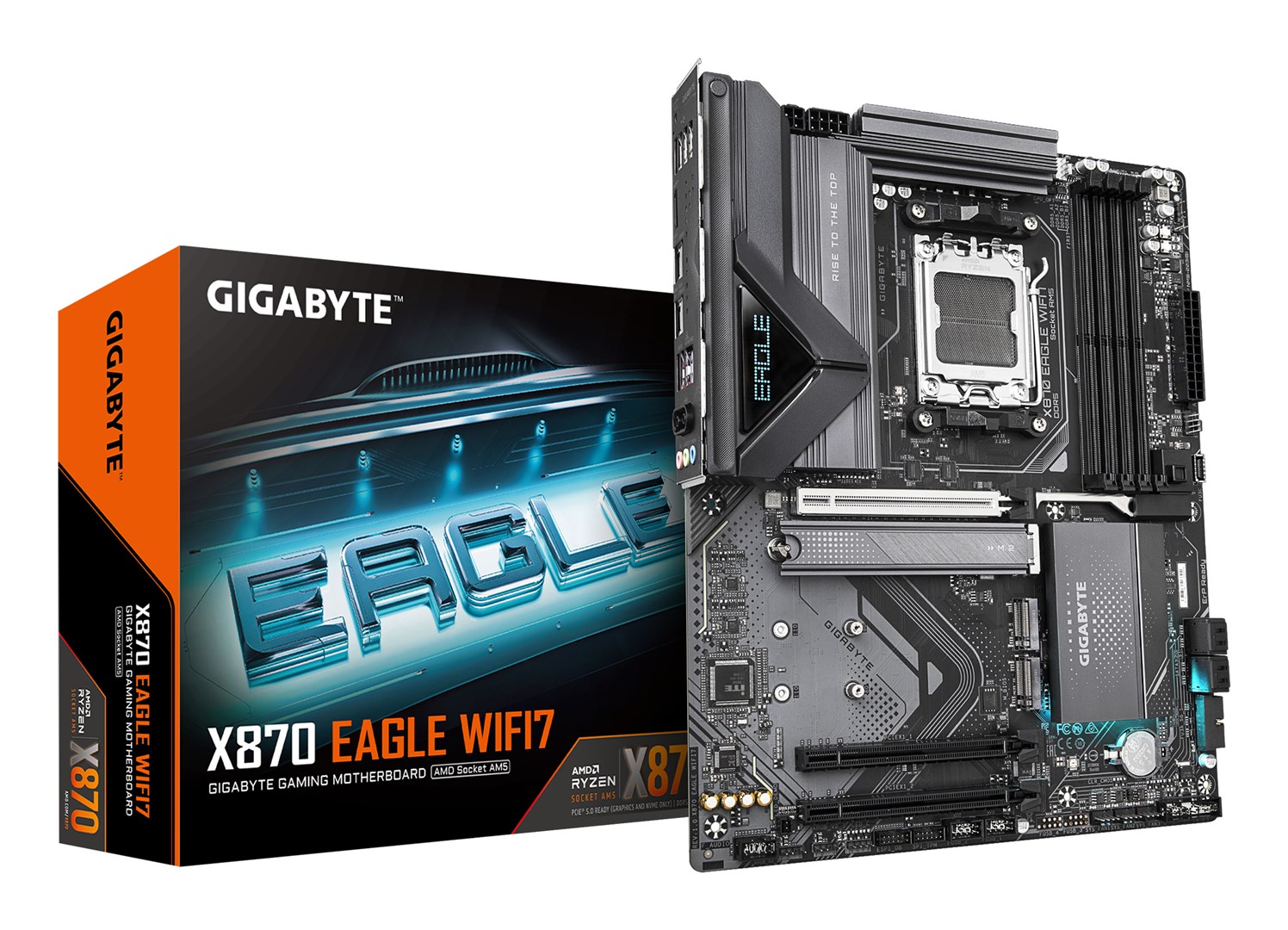

GIGABYTE X870 EAGLE WIFI7 Motherboard

GIGABYTE X870 EAGLE WIFI7 Motherboard

A motherboard for assembling or upgrading a compatible desktop computer. It brings the main components together and provides the foundation for a well-planned system build.

Characteristics
Component type
Motherboard
Processor socket
AM5
Motherboard chipset
X870
Supported memory type
DDR5
Maximum supported memory speed
8200 MHz
Processor | Maximum internal memory supported by processor
256 GB
Processor | Supported processor sockets
Socket AM5
Processor | Compatible processor series
AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Processor | Processor manufacturer
AMD
Graphics | On-board graphics card
No
Graphics | Parallel processing technology support
Not supported
Graphics | DirectX version
12.0
Features | Audio output channels
7.1 channels
Features | Windows operating systems supported
Windows 11 x64
Features | PC health monitoring
Fan, Temperature, Voltage
Features | Audio chip
Realtek ALC897
Features | Motherboard chipset family
AMD
Features | Motherboard form factor
ATX
Features | Product colour
Black
Memory | Supported memory clock speed (max)
8200 MHz
Memory | Memory slots type
DIMM
Memory | ECC сompatibility
Non-ECC
Memory | Memory channels
Dual-channel
Memory | Supported memory types
DDR5-SDRAM
Memory | Supported memory clock speeds
4400, 7000, 4800 MHz, 6000, 8000, 6600, 5200, 6200, 6666, 6400, 6800, 8200 MHz, 5600, 7200, 7600 MHz, 7800
Memory | Number of memory slots
4
Memory | Supported memory module capacities
1GB, 40GB, 16GB, 32GB, 2GB, 4GB, 8GB, 24GB, 64GB, 48GB
Memory | Maximum internal memory
256 GB
Memory | Unbuffered memory
Yes
Memory | Maximum internal memory per slot
64 GB
Weight & dimensions | Depth
244 mm
Weight & dimensions | Height
35 mm
Weight & dimensions | Width
305 mm
Network | Wi-Fi standards
Wi-Fi 7 (802.11be)
Network | WLAN controller model
MediaTek MT7925
Network | Bluetooth version
5.4
Network | Ethernet LAN
Yes
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | Bluetooth
Yes
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network | Wi-Fi
Yes
Network | LAN controller
Realtek RTL8125
Internal I/O | USB 3.2 Gen 2x2 connectors
1
Internal I/O | Number of CPU fan connectors
2
Internal I/O | RGB LED pin header
Yes
Internal I/O | Number of RGB LED pin headers
4
Internal I/O | Number of SATA III connectors
4
Internal I/O | 12V power connector
Yes
Internal I/O | TPM connector
Yes
Internal I/O | Number of water pump connectors
1
Internal I/O | Number of EPS power connectors (8-pin)
1
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | USB 2.0 connectors
2
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | Front panel audio connector
Yes
Internal I/O | Number of chassis fan connectors
4
Internal I/O | Front panel connector
Yes
Internal I/O | CPU fan connector
Yes
Internal I/O | Peripheral (Molex) power connectors (4-pin)
1
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
BIOS | Desktop Management Interface (DMI) version
2.7
BIOS | Clear CMOS button
Yes
BIOS | Clear CMOS jumper
Yes
BIOS | BIOS type
UEFI AMI
Packaging data | Package height
80 mm
Packaging data | Package width
335 mm
Packaging data | Package depth
270 mm
Packaging data | Package weight
1.94 kg
Packaging content | Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Packaging content | Antenna included
Yes
Packaging content | Batteries included
Yes
Packaging content | Screws included
Yes
Storage controllers | RAID support
Yes
Storage controllers | Number of storage drives supported
7
Storage controllers | Number of HDDs supported
4
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | RAID levels
10, 1, 0
Rear panel I/O ports | USB4 Gen 2x2 ports quantity
2
Rear panel I/O ports | Headphone outputs
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Rear panel I/O ports | HDMI version
2.1
Rear panel I/O ports | WiFi-AP antenna jack
2
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | DisplayPort version
1.4
Rear panel I/O ports | USB 2.0 ports quantity
4
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Expansion slots | 2nd M.2 highest PCI Express generation
4.0
Expansion slots | 3rd M.2 highest PCI Express generation
4.0
Expansion slots | 1st M.2 largest key size
25110
Expansion slots | 2nd M.2 largest key size
25110
Expansion slots | 1st M.2 highest PCI Express generation
5.0
Expansion slots | 3rd M.2 largest key size
25110
Expansion slots | Number of M.2 (M) slots
3
Expansion slots | PCI Express x16 (Gen 3.x) slots
2
Battery | Lithium weight per battery
0.07 g
Battery | Battery type
CR2032
Battery | Battery weight
3 g
