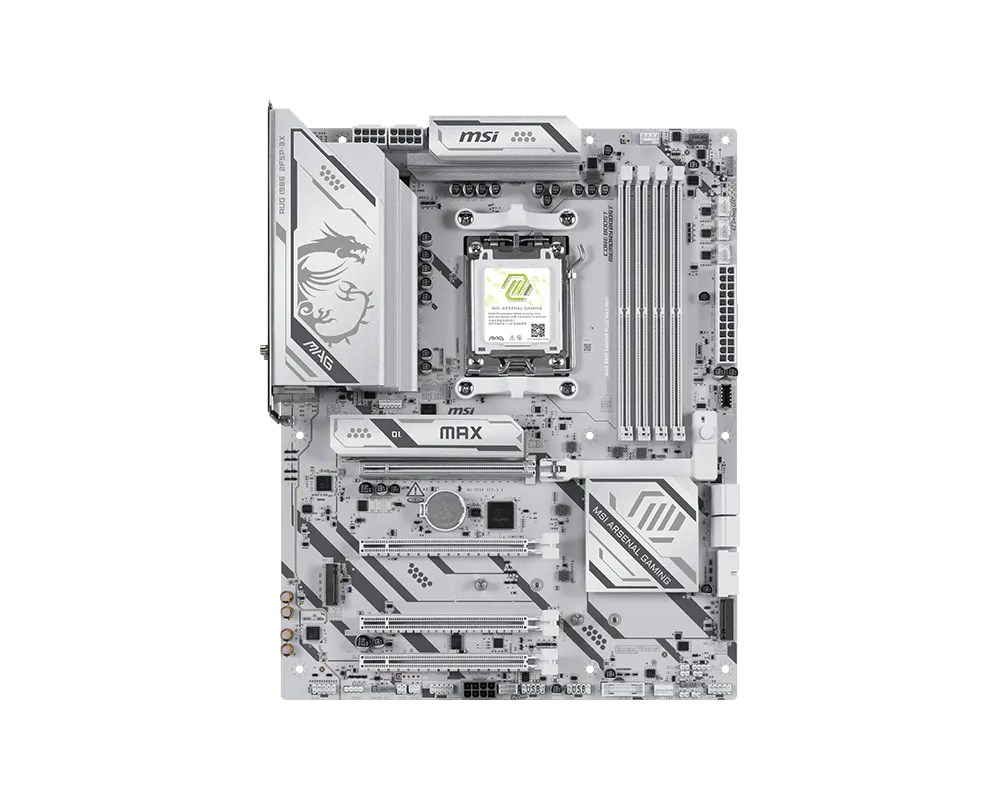

MSI MAG B850 GAMING PLUS MAX WIFI motherboard AMD B850 Socket AM5 ATX 7E56-030R DDR5

MSI MAG B850 GAMING PLUS MAX WIFI Motherboard

A motherboard for assembling or upgrading a compatible desktop computer. It brings the main components together and provides the foundation for a well-planned system build.

Characteristics
Component type
Motherboard
Processor socket
AM5
Supported memory type
DDR5
Motherboard chipset
AMD B850
Maximum supported memory speed
8200 MHz
Processor | Supported processor sockets
Socket AM5
Processor | Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor | Processor manufacturer
AMD
Features | Product colour
White
Features | Audio chip
Realtek ALC897
Features | Motherboard chipset family
AMD
Features | Motherboard form factor
ATX
Features | Audio output channels
7.1 channels
Features | Windows operating systems supported
Windows 11 x64
Memory | Supported memory clock speeds
4800, 6400, 5600, 8200 MHz
Memory | Maximum internal memory
256 GB
Memory | Memory slots type
DIMM
Memory | Supported memory types
DDR5-SDRAM
Memory | Supported memory clock speed (max)
8200 MHz
Memory | Memory channels
Dual-channel
Memory | Number of memory slots
4
Memory | ECC сompatibility
Non-ECC
Weight & dimensions | Width
243.8 mm
Weight & dimensions | Depth
304.8 mm
Network | Bluetooth
Yes
Network | Wi-Fi standards
Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11g, 802.11b
Network | Ethernet LAN
Yes
Network | Bluetooth version
5.4
Network | Wi-Fi
Yes
Network | Ethernet interface type
5 Gigabit Ethernet
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Internal I/O | CPU fan connector
Yes
Internal I/O | USB 2.0 connectors
4
Internal I/O | Number of SATA III connectors
4
Internal I/O | RGB LED pin header
Yes
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | Total number of SATA connectors
4
Internal I/O | Number of CPU fan connectors
6
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
Internal I/O | Number of water pump connectors
1
Internal I/O | Number of RGB LED pin headers
3
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | Number of HDDs supported
4
Storage controllers | Supported storage drive interfaces
M.2, Micro SATA III
Storage controllers | RAID levels
0, 1
Storage controllers | Number of storage drives supported
7
Storage controllers | RAID support
Yes
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | DisplayPort version
1.2
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | USB 2.0 ports quantity
4
Expansion slots | Number of M.2 (M) slots
3
Expansion slots | 1st M.2 largest key size
2280
Expansion slots | 2nd M.2 highest PCI Express generation
4.0
Expansion slots | 1st M.2 highest PCI Express generation
5.0
Expansion slots | 3rd M.2 highest PCI Express generation
4.0
Expansion slots | 3rd M.2 largest key size
2280
Expansion slots | 2nd M.2 largest key size
22110
