Article: DMC-000038704

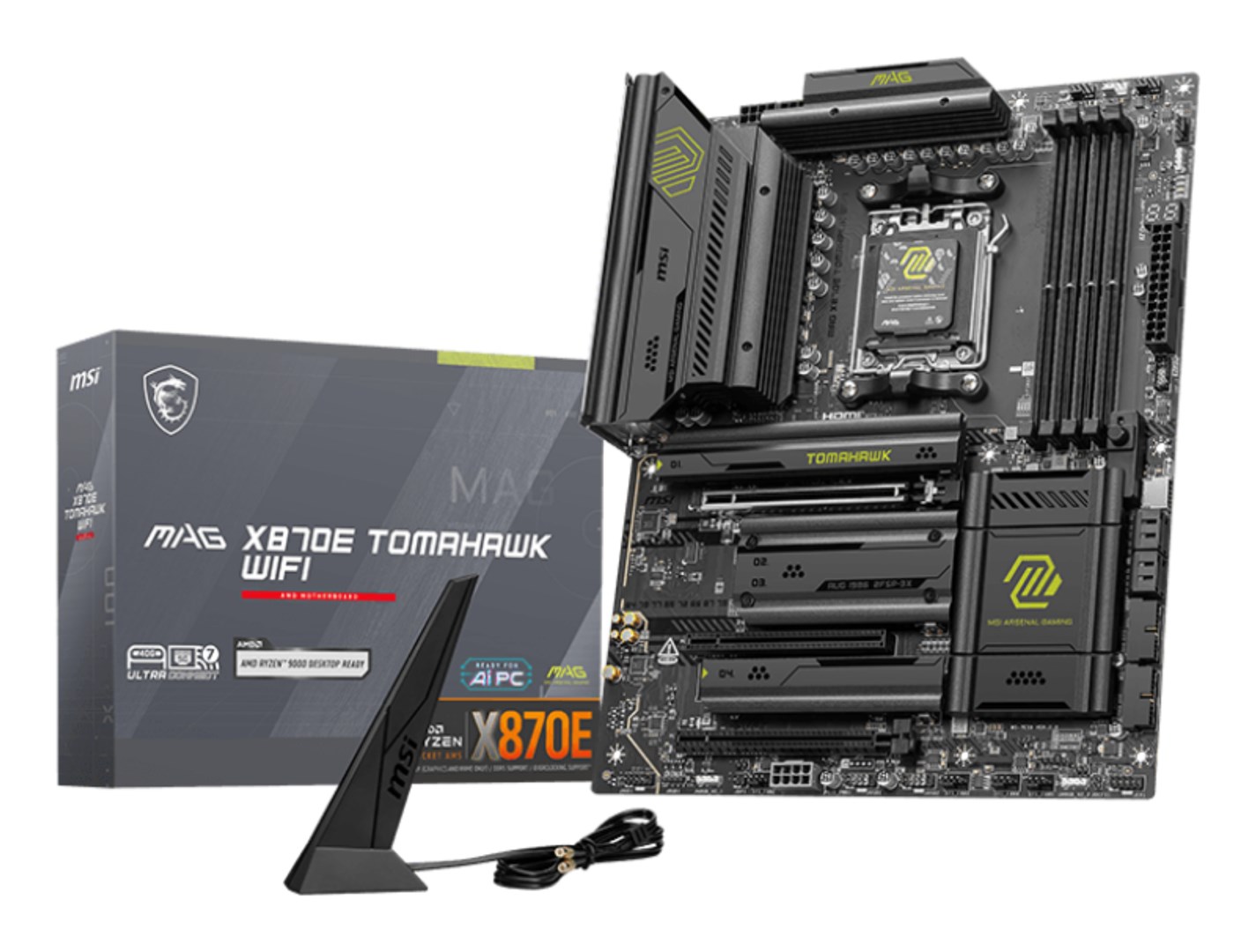

MSI MAG X870E TOMAHAWK WIFI Motherboard 7E59-004R

MSI MAG X870E TOMAHAWK WIFI Motherboard

MSI MAG X870E TOMAHAWK WIFI Motherboard has the AM5 processor socket. It also has the AMD X870E chipset.

Characteristics
Component type
Motherboard
Processor socket
AM5
Supported memory type
DDR5
Motherboard chipset
AMD X870E
Maximum supported memory speed
8400 MHz
Processor | Supported processor sockets
Socket AM5
Processor | Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor | Processor manufacturer
AMD
Processor | Maximum internal memory supported by processor
256 GB
Graphics | On-board graphics card
No
Features | Audio output channels
7.1 channels
Features | Product colour
Black
Features | Motherboard chipset family
AMD
Features | Motherboard form factor
ATX
Features | PC health monitoring
CPU, Fan, Temperature, Voltage
Memory | Supported memory clock speeds
5600, 4800, 8400
Memory | Memory channels
Dual-channel
Memory | Supported memory clock speed (max)
8400 MHz
Memory | Maximum internal memory
256 GB
Memory | Memory slots type
DIMM
Memory | Supported memory types
DDR5-SDRAM
Memory | ECC сompatibility
Non-ECC
Memory | Number of memory slots
4
Weight & dimensions | Depth
304.8 mm
Weight & dimensions | Width
243.8 mm
Network | Wi-Fi standards
802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), 802.11g, 802.11a, Wi-Fi 6 (802.11ax)
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network | Bluetooth
Yes
Network | LAN controller
Realtek RTL8126
Network | Ethernet interface type
5 Gigabit Ethernet
Network | Bluetooth version
5.4
Network | Wi-Fi
Yes
Network | Ethernet LAN
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | Number of SATA III connectors
4
Internal I/O | CPU fan connector
Yes
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | USB 2.0 connectors
4
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
Internal I/O | Total number of SATA connectors
4
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | Number of storage drives supported
8
Storage controllers | Number of HDDs supported
4
Rear panel I/O ports | S/PDIF out port
Yes
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | DisplayPort version
1.4
Rear panel I/O ports | DisplayPorts quantity
2
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Rear panel I/O ports | USB 2.0 ports quantity
4
Rear panel I/O ports | HDMI version
2.1
Rear panel I/O ports | Microphone in
Yes
Rear panel I/O ports | USB4 Gen 2x2 ports quantity
1
Expansion slots | 4th M.2 highest PCI Express generation
4.0
Expansion slots | 2nd M.2 largest key size
2280
Expansion slots | PCI Express x16 (Gen 3.x) slots
1
Expansion slots | 2nd M.2 highest PCI Express generation
5.0
Expansion slots | Number of M.2 (M) slots
4
Expansion slots | 4th M.2 largest key size
2280
Expansion slots | 3rd M.2 largest key size
2280
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | 1st M.2 largest key size
22110
Expansion slots | 1st M.2 highest PCI Express generation
5.0
Expansion slots | 3rd M.2 highest PCI Express generation
4.0
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Safety warning | Warnings
Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.
