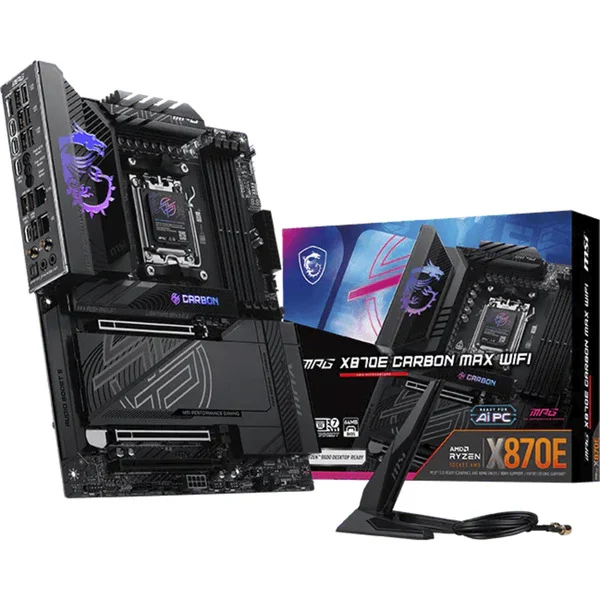

MSI MPG X870E CARBON MAX WIFI Motherboard 7E49-022R

MSI MPG X870E CARBON MAX WIFI Motherboard

The MSI MPG X870E CARBON MAX WIFI Motherboard 7E49-022R uses the AMD X870E chipset. It uses the AM5 processor socket and supports DDR5 memory.

Characteristics
Processor socket
AM5
Supported memory type
DDR5
Wi-Fi
Yes
Color
Silver
Form factor
ATX
Onboard audio
Realtek ALC4080 Codec
Bluetooth
Yes
Expansion slots
["PCIe x16: 3x (electrical lanes: 1x PCIe x16, 1x PCIe x8, 1x PCIe x4)"]
Internal connectors
["SATA: 4","M.2: 4","M.2 key: M","M.2 Slot 1: PCIe Gen 5.0","M.2 Slot 2: PCIe Gen 5.0","M.2 Slot 3: PCIe Gen 4.0","M.2 Slot 4: PCIe Gen 4.0","M.2 interface: PCIe","M.2 module length: 60 - 110 mm","RGB LED headers: 1","Addressable RGB LED headers: 3","USB-C 3.2 Gen 2x2 (20 Gbit/s): 1","4-pin PWM fan headers: 7"]
Maximum memory capacity
256 GB
Memory channels
2 count
Memory controller in CPU
Yes
Maximum memory ranks
8 count
Memory slots
4 count
Motherboard chipset
AMD X870E
Component type
Motherboard
Display connector requirement
The motherboard display connectors require a processor with integrated graphics.
Onboard networking
["Realtek 8126 5G LAN","Realtek 8125 2.5G LAN","Wi-Fi 7, Bluetooth 5.4"]
Additional headers
["USB 3.2 Gen 1 (5 Gbit/s): 4","USB 2.0: 4","TPM: Yes"]
Power connectors
["ATX12V (24-Pin + 2x 8-Pin)","1x PCIe 6+2-Pin"]
Supported processors
1 count
Board height
304.8 mm
Board width
243.84 mm
Rear connectors
["USB-C 3.2 Gen 2x2 (20 Gbit/s): 1","USB-C 3.2 Gen 2 (10 Gbit/s): 2","USB-A 3.2 Gen 1 (5 Gbit/s): 9","USB4: 2","HDMI: 1","Microphone: 1","Line-out: 1"]
RGB synchronization
Mystic Light
Supported memory standards
["DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s"]
Supported operating systems
["Windows 11"]
Supported processor models
["Ryzen 5 7xxx (Raphael)","Ryzen 5 7xxxX (Raphael)","Ryzen 5 7xxxF (Raphael)","Ryzen 5 7xxxX3D (Raphael)","Ryzen 5 8xxxF (Phoenix)","Ryzen 5 8xxxG (Phoenix)","Ryzen 5 9xxx (Granite Ridge)","Ryzen 5 9xxxX (Granite Ridge)","Ryzen 5 9xxxF (Granite Ridge)","Ryzen 7 7xxx (Raphael)","Ryzen 7 7xxxX (Raphael)","Ryzen 7 7xxxX3D (Raphael)","Ryzen 7 8xxxG (Phoenix)","Ryzen 7 8xxxF (Phoenix)","Ryzen 7 9xxxX (Granite Ridge)","Ryzen 7 9xxxX3D (Granite Ridge)","Ryzen 9 7xxx (Raphael)","Ryzen 9 7xxxX (Raphael)","Ryzen 9 7xxxX3D (Raphael)","Ryzen 9 9xxxX (Granite Ridge)","Ryzen 9 9xxxX3D (Granite Ridge)"]
