Article: DMC-000011212

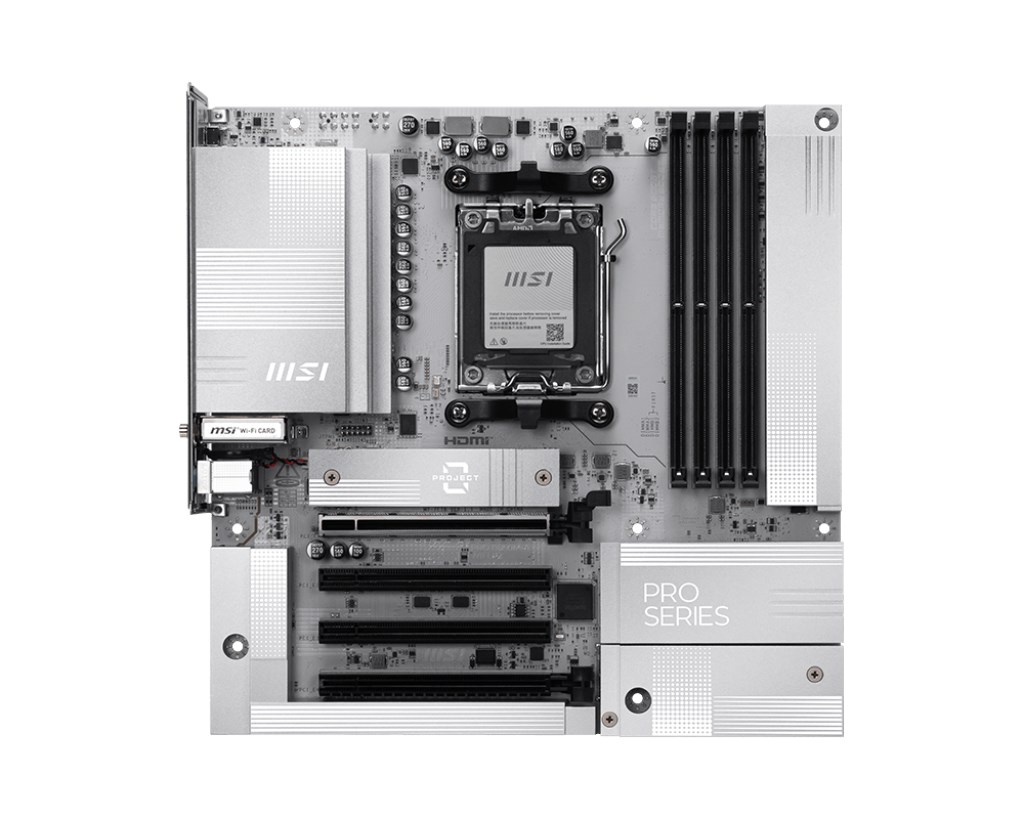

MSI PRO B850M-A WIFI PZ Motherboard 7E78-001R

MSI PRO B850M-A WIFI PZ Motherboard

MSI PRO B850M-A WIFI PZ Motherboard has the AM5 processor socket. It also has the AMD B850 chipset.

Characteristics
Component type
Motherboard
Processor socket
AM5
Supported memory type
DDR5
Motherboard chipset
AMD B850
Maximum supported memory speed
8200 MHz
Processor | Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor | Processor manufacturer
AMD
Processor | Supported processor sockets
Socket AM5
Graphics | On-board graphics card
No
Features | Windows operating systems supported
Windows 11 x64
Features | Audio chip
Realtek ALC897
Features | Audio output channels
7.1 channels
Features | Motherboard chipset family
AMD
Features | Motherboard form factor
micro ATX
Memory | Memory slots type
DIMM
Memory | Memory channels
Dual-channel
Memory | Supported memory types
DDR5-SDRAM
Memory | ECC сompatibility
Non-ECC
Memory | Supported memory clock speed (max)
8200 MHz
Memory | Number of memory slots
4
Memory | Supported memory clock speeds
6000, 6400, 8200 MHz
Memory | Maximum internal memory
256 GB
Weight & dimensions | Width
243.8 mm
Weight & dimensions | Depth
243.8 mm
Network | Wi-Fi standards
Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b
Network | Wi-Fi
Yes
Network | Bluetooth version
5.4
Network | Ethernet LAN
Yes
Network | Ethernet interface type
5 Gigabit Ethernet
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network | Bluetooth
Yes
Internal I/O | CPU fan connector
Yes
Internal I/O | Number of RGB LED pin headers
3
Internal I/O | Total number of SATA connectors
4
Internal I/O | Number of CPU fan connectors
2
Internal I/O | Front panel connector
Yes
Internal I/O | RGB LED pin header
Yes
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | Number of SATA III connectors
4
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | USB 2.0 connectors
4
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Internal I/O | Front panel audio connector
Yes
Storage controllers | RAID levels
1, 10, 0
Storage controllers | Number of HDDs supported
4
Storage controllers | Number of storage drives supported
6
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive interfaces
M.2
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | Clear CMOS button
Yes
Rear panel I/O ports | HDMI version
2.1
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
Rear panel I/O ports | Flashback BIOS button
Yes
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | DisplayPort version
1.4
Rear panel I/O ports | DisplayPorts quantity
1
Expansion slots | 2nd M.2 highest PCI Express generation
4.0
Expansion slots | Number of M.2 (M) slots
2
Expansion slots | 1st M.2 largest key size
2280
Expansion slots | 2nd M.2 largest key size
2280
Expansion slots | 1st M.2 highest PCI Express generation
5.0
Expansion slots | PCI Express x16 slots
4
