Article: DMC-000078983

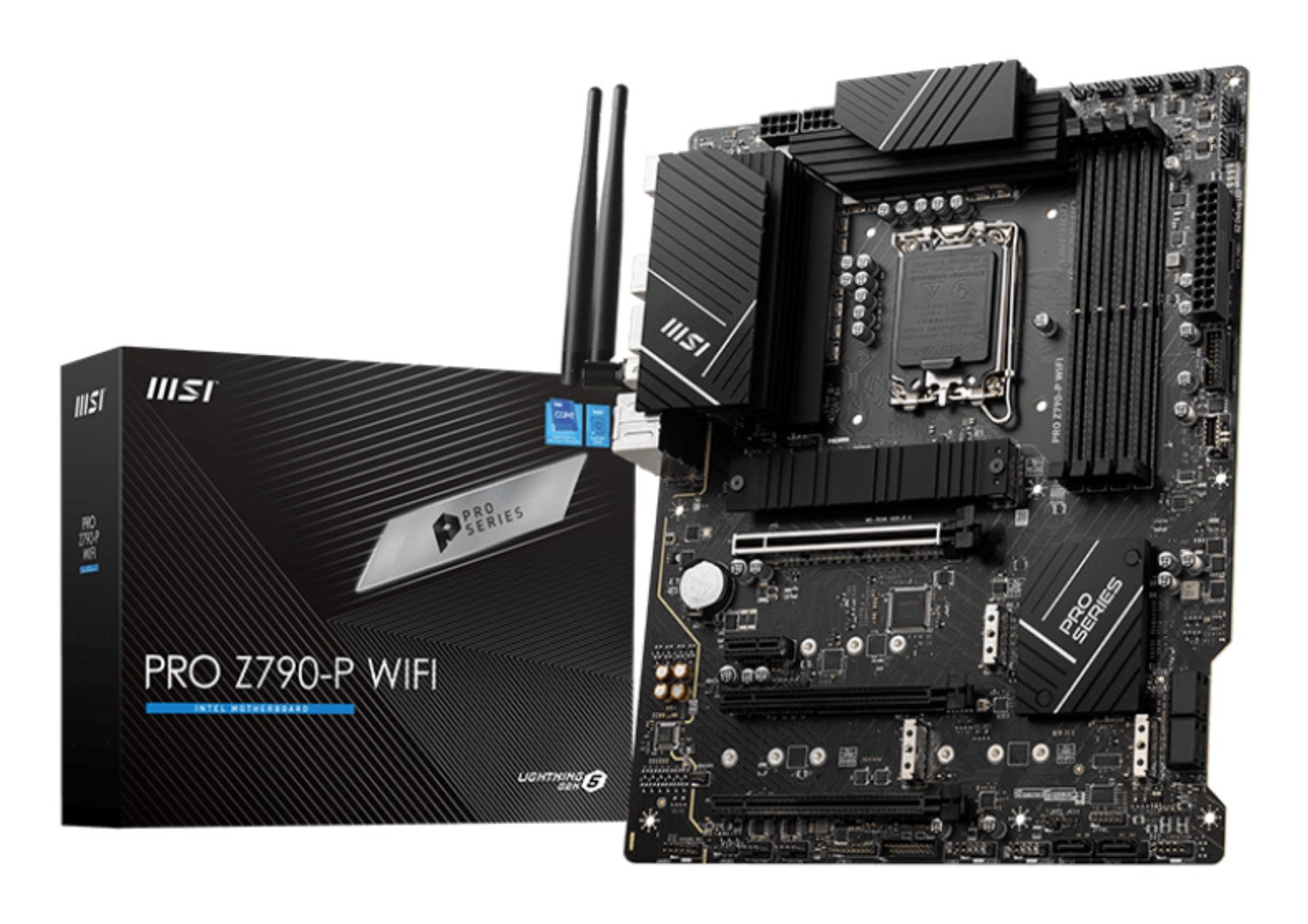

MSI PRO Z790-P WIFI motherboard Intel Z790 LGA 1700 ATX 7E06-001R DDR5

MSI PRO Z790-P WIFI motherboard Intel Z790 LGA 1700 ATX 7E06-001R DDR5

A motherboard for assembling or upgrading a compatible desktop computer. It brings the main components together and provides the foundation for a well-planned system build.

Characteristics
Component type
Motherboard
Processor socket
LGA 1700
Supported memory type
DDR5
Motherboard chipset
Intel Z790
Maximum supported memory speed
7000 MHz
Processor | Supported processor sockets
LGA 1700
Processor | Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold
Processor | Processor manufacturer
Intel
Graphics | Parallel processing technology support
Not supported
Graphics | On-board graphics card
No
Features | Audio output channels
7.1 channels
Features | Windows operating systems supported
Windows 11 x64, Windows 10 x64
Features | Motherboard form factor
ATX
Features | Product colour
Black
Features | Audio chip
Realtek ALC897
Features | Motherboard chipset family
Intel
Memory | Supported memory clock speeds
6600, 6400, 5000, 6000, 5200, 5800, 5400, 6800, 4800, 7000
Memory | Maximum internal memory
128 GB
Memory | Supported memory types
DDR5-SDRAM
Memory | Number of memory slots
4
Memory | ECC сompatibility
Non-ECC
Memory | Supported memory clock speed (max)
7000 MHz
Weight & dimensions | Depth
243.8 mm
Weight & dimensions | Width
304.8 mm
Network | Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Network | Bluetooth
Yes
Network | Wi-Fi standards
Wi-Fi 4 (802.11n), 802.11g, 802.11b, 802.11a, Wi-Fi 6 (802.11ax)
Network | Ethernet LAN
Yes
Network | Wi-Fi
Yes
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | Bluetooth version
5.3
Internal I/O | Front panel audio connector
Yes
Internal I/O | Number of SATA III connectors
6
Internal I/O | TPM connector
Yes
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
Internal I/O | USB 2.0 connectors
4
Internal I/O | Front panel connector
Yes
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | RGB LED pin header
Yes
BIOS | BIOS type
UEFI AMI
Packaging content | Bundled software
Drivers MSI Center Intel Extreme Tuning Utility CPU-Z MSI GAMING Norton 360 Deluxe AIDA64 Extreme - MSI Edition
Packaging content | Cables included
SATA
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive interfaces
M.2, PCI Express
Storage controllers | RAID levels
0, 1, 10, 5
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | Number of storage drives supported
10
Rear panel I/O ports | DisplayPort version
1.4
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | USB 2.0 ports quantity
4
Rear panel I/O ports | HDMI version
2.1
Rear panel I/O ports | S/PDIF out port
Yes
Rear panel I/O ports | USB 3.2 Gen 2x2 Type-C ports quantity
1
Expansion slots | Number of M.2 (M) slots
4
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Safety warning | Warnings
Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
