Article: DMC-000079067

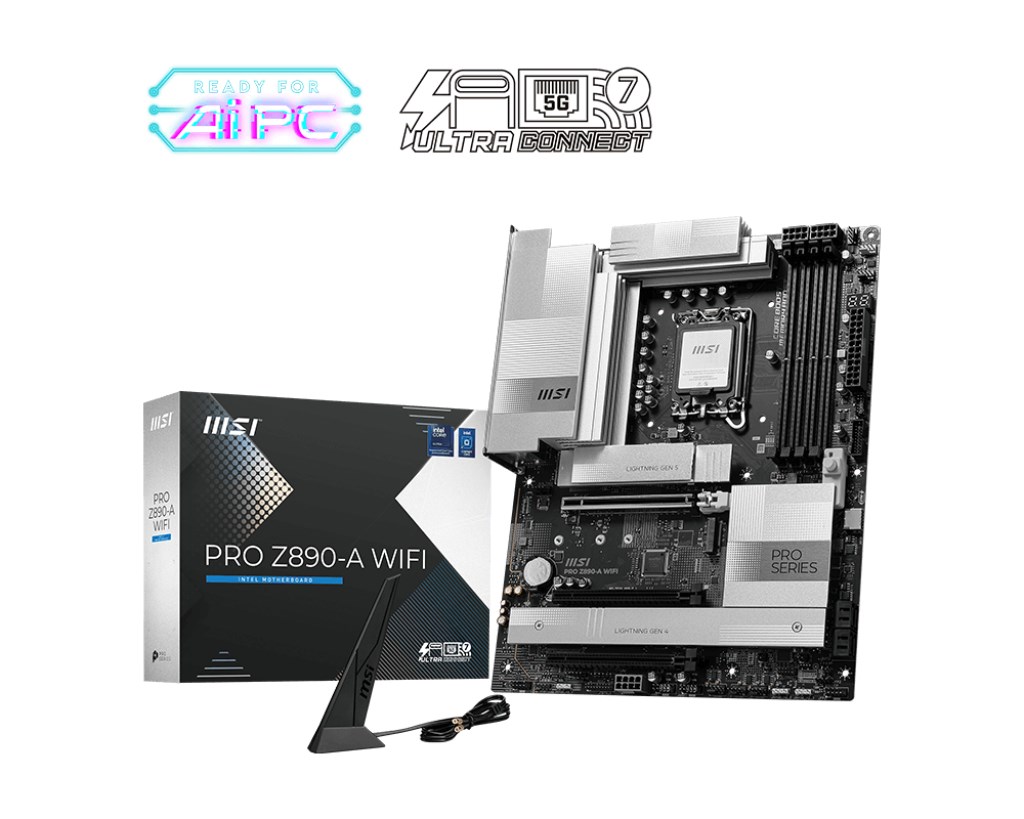

MSI PRO Z890-A WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX 7E32-002R DDR5

MSI PRO Z890-A WIFI Motherboard

A motherboard for assembling or upgrading a compatible desktop computer. It brings the main components together and provides the foundation for a well-planned system build.

Characteristics
Component type
Motherboard
Processor socket
LGA 1851
Supported memory type
DDR5
Motherboard chipset
Intel Z890
Maximum supported memory speed
9200 MHz
Processor | Maximum internal memory supported by processor
256 GB
Processor | Processor manufacturer
Intel
Processor | Compatible processor series
Intel Core Ultra (Series 2)
Processor | Supported processor sockets
LGA 1851
Graphics | On-board graphics card
No
Features | Audio output channels
7.1 channels
Features | Motherboard form factor
ATX
Features | Product colour
Black
Features | Motherboard chipset family
Intel
Features | Audio chip
Realtek ALC897
Features | Windows operating systems supported
Windows 11 x64
Memory | Supported memory clock speeds
6400, 9200 MHz
Memory | Maximum internal memory
256 GB
Memory | Memory slots type
DIMM
Memory | Memory channels
Dual-channel
Memory | Supported memory types
DDR5-SDRAM
Memory | Supported memory clock speed (max)
9200 MHz
Memory | Number of memory slots
4
Memory | ECC сompatibility
Non-ECC
Weight & dimensions | Width
243.8 mm
Weight & dimensions | Depth
304.8 mm
Network | Bluetooth
Yes
Network | Ethernet interface type
5 Gigabit Ethernet
Network | Wi-Fi standards
Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11b, 802.11g
Network | Bluetooth version
5.4
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network | Wi-Fi
Yes
Network | Ethernet LAN
Yes
Internal I/O | USB 2.0 connectors
4
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Internal I/O | Number of SATA III connectors
4
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | CPU fan connector
Yes
Internal I/O | Total number of SATA connectors
4
Internal I/O | TPM connector
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | Number of EPS power connectors (8-pin)
1
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | RAID levels
5, 0, 10, 1
Storage controllers | Number of storage drives supported
4
Storage controllers | Number of HDDs supported
8
Rear panel I/O ports | DisplayPort version
1.4
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
Rear panel I/O ports | Thunderbolt ports quantity
1
Rear panel I/O ports | HDMI version
2.1
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Expansion slots | Number of M.2 (M) slots
4
Expansion slots | PCI Express x16 (Gen 4.x) slots
2
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Expansion slots | PCI Express x4 (Gen 4.x) slots
2
Safety warning | Warnings
When disposing of the product, follow local regulations for the recycling of electronics., Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician.
