Article: DMC-000015422

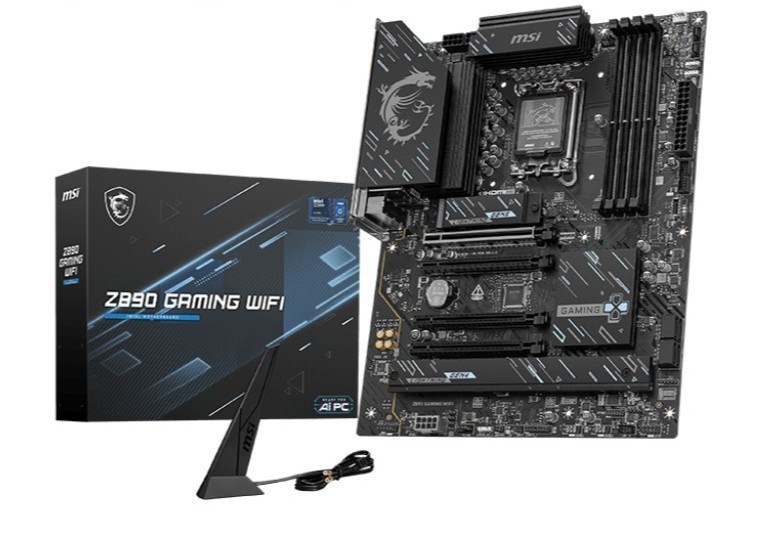

MSI Z890 GAMING WIFI Motherboard 7E54-006R

MSI Z890 GAMING WIFI Motherboard

MSI Z890 GAMING WIFI Motherboard has the LGA 1851 processor socket. It also has the Intel Z890 chipset.

Characteristics
Component type
Motherboard
Processor socket
LGA 1851
Supported memory type
DDR5
Motherboard chipset
Intel Z890
Maximum supported memory speed
8800 MHz
Processor | Supported processor sockets
Intel LGA1851
Processor | Processor manufacturer
Intel
Processor | Compatible processor series
Intel Core Ultra (Series 2)
Processor | Maximum internal memory supported by processor
256 GB
Features | Audio output channels
7.1 channels
Features | Product colour
Black
Features | Motherboard form factor
ATX
Features | Motherboard chipset family
Intel
Features | Audio chip
Realtek ALC897
Features | Windows operating systems supported
Windows 11
Memory | Unbuffered memory
Yes
Memory | Memory channels
Dual-channel
Memory | Supported memory clock speed (max)
8800 MHz
Memory | ECC сompatibility
Non-ECC
Memory | Supported memory clock speeds
8800, 4800, 6400
Memory | Maximum internal memory
256 GB
Memory | Number of memory slots
4
Memory | Supported memory types
DDR5-SDRAM
Weight & dimensions | Width
243.8 mm
Weight & dimensions | Depth
304.8 mm
Network | Bluetooth
Yes
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network | Wi-Fi standards
IEEE 802.11n, IEEE 802.11ax, Wi-Fi 7 (802.11be), 802.11g, 802.11b, IEEE 802.11ac, 802.11a
Network | Wi-Fi
Yes
Network | Ethernet LAN
Yes
Network | Bluetooth version
5.4
Network | Ethernet interface type
2.5 Gigabit Ethernet
Internal I/O | USB 2.0 connectors
4
Internal I/O | Number of SATA III connectors
4
Internal I/O | Number of EPS power connectors (8-pin)
1
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Internal I/O | Total number of SATA connectors
4
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | RAID levels
0, 1, 10, 5
Rear panel I/O ports | DisplayPort version
1.4
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
Rear panel I/O ports | HDMI version
2.1
Rear panel I/O ports | USB 3.2 Gen 2x2 Type-C ports quantity
1
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | Thunderbolt ports quantity
1
Expansion slots | PCI Express x16 slots
4
Expansion slots | Number of M.2 (M) slots
3
