Article: DMC-000010760

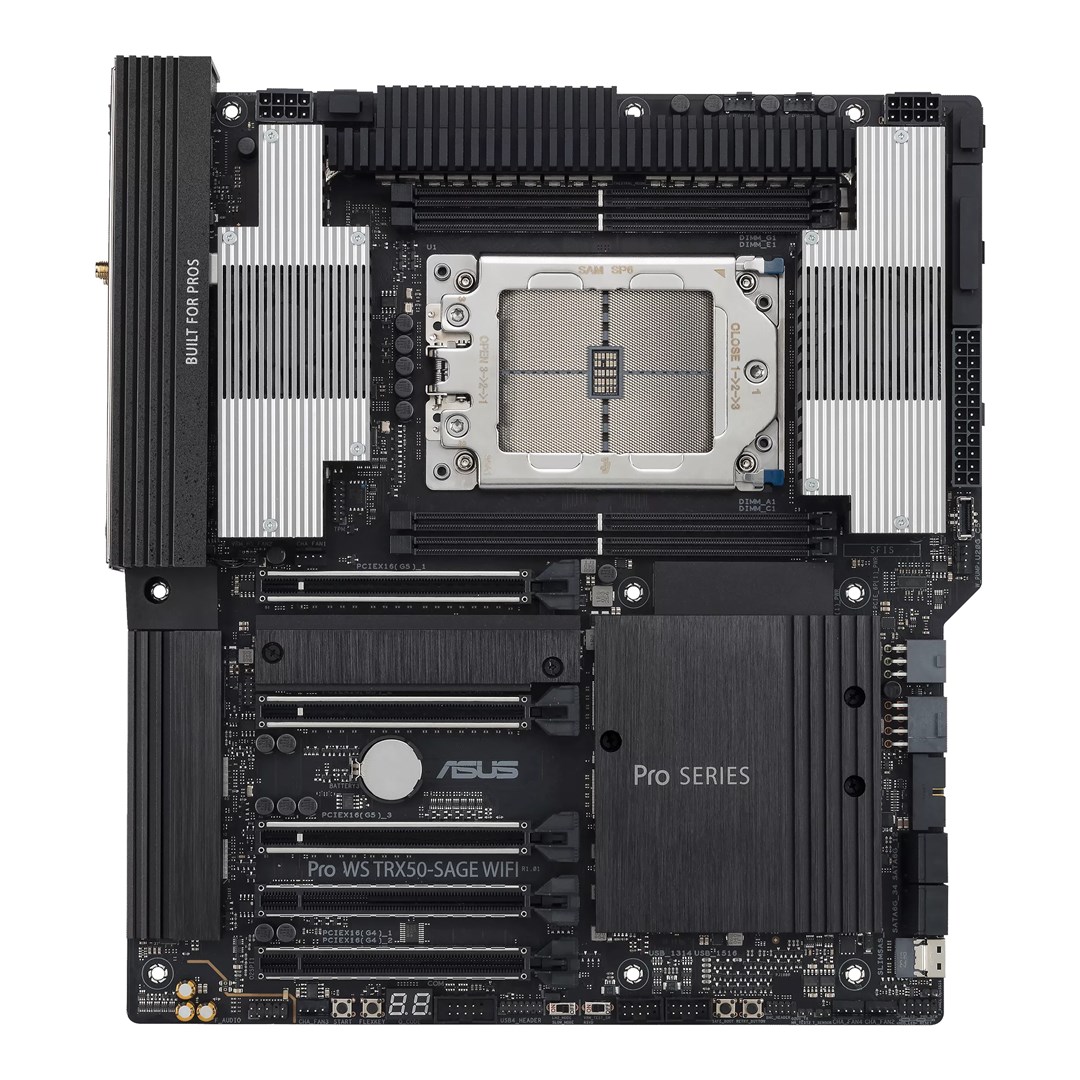

ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB motherboard for workstations 90MB1FZ0-M0EAY0 DDR5

ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Motherboard

ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Motherboard has the sTR5 processor socket. It also has the AMD TRX50 chipset.

Characteristics
Component type
Server motherboard
Processor socket
sTR5
Supported memory type
DDR5
Motherboard chipset
AMD TRX50
Processor | Compatible processor series
AMD Ryzen™ Threadripper™
Processor | Processor manufacturer
AMD
Features | Audio chip
Realtek ALC1220P
Features | Motherboard chipset family
AMD
Features | Product colour
Black
Features | Motherboard form factor
SSI CEB
Features | Component for
Workstation
Features | Windows operating systems supported
Windows 10 x64, Windows 11
Memory | ECC
Yes
Memory | Number of memory slots
4
Memory | Memory channels
Quad-channel
Memory | Supported memory types
DDR5 ECC RDIMM
Memory | Memory slots type
DIMM
Weight & dimensions | Depth
280 mm
Weight & dimensions | Width
305 mm
Network | LAN controller
Intel I226-LM
Network | Bluetooth
Yes
Network | Wi-Fi
Yes
Network | Bluetooth version
5.4
Network | Ethernet LAN
Yes
Network | Ethernet interface type
10 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network | Wi-Fi standards
Wi-Fi 7 (802.11be)
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Internal I/O | Front panel audio connector
Yes
Internal I/O | Number of SATA III connectors
4
Internal I/O | CPU fan connector
Yes
Internal I/O | USB 2.0 connectors
2
Internal I/O | Number of chassis fan connectors
4
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | Number of COM connectors
1
Internal I/O | TPM connector
Yes
Internal I/O | Integrated SAS ports
1
Internal I/O | Chassis intrusion connector
Yes
Internal I/O | 12V power connector
Yes
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | USB 3.2 Gen 2x2 connectors
1
BIOS | BIOS type
UEFI AMI
BIOS | BIOS memory size
256 Mbit
BIOS | Clear CMOS button
Yes
Packaging data | Package weight
4.85 kg
Packaging data | Package depth
380 mm
Packaging data | Package height
100 mm
Packaging data | Package width
320 mm
Packaging content | Cables included
PCIe, SATA
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | RAID levels
10, 1, 0, 5
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | RAID support
Yes
Storage controllers | Number of storage drives supported
7
Storage controllers | Number of HDDs supported
4
Rear panel I/O ports | USB 2.0 ports quantity
2
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
2
Rear panel I/O ports | S/PDIF out port
Yes
Rear panel I/O ports | USB connector type
USB Type-C, USB Type-A
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
Rear panel I/O ports | WiFi-AP antenna jack
1
Rear panel I/O ports | Microphone in
Yes
Rear panel I/O ports | USB 3.2 Gen 2x2 Type-C ports quantity
1
Expansion slots | Number of M.2 (M) slots
3
Expansion slots | PCI Express x16 (Gen 4.x) slots
2
Expansion slots | PCI Express x16 (Gen 5.x) slots
3
Other features | Weight
2.53 kg
Safety warning | Warnings
Use only in a dry and well-ventilated area., Do not open or disassemble the motherboard., The motherboard may contain electronic components hazardous to health - avoid direct contact.
