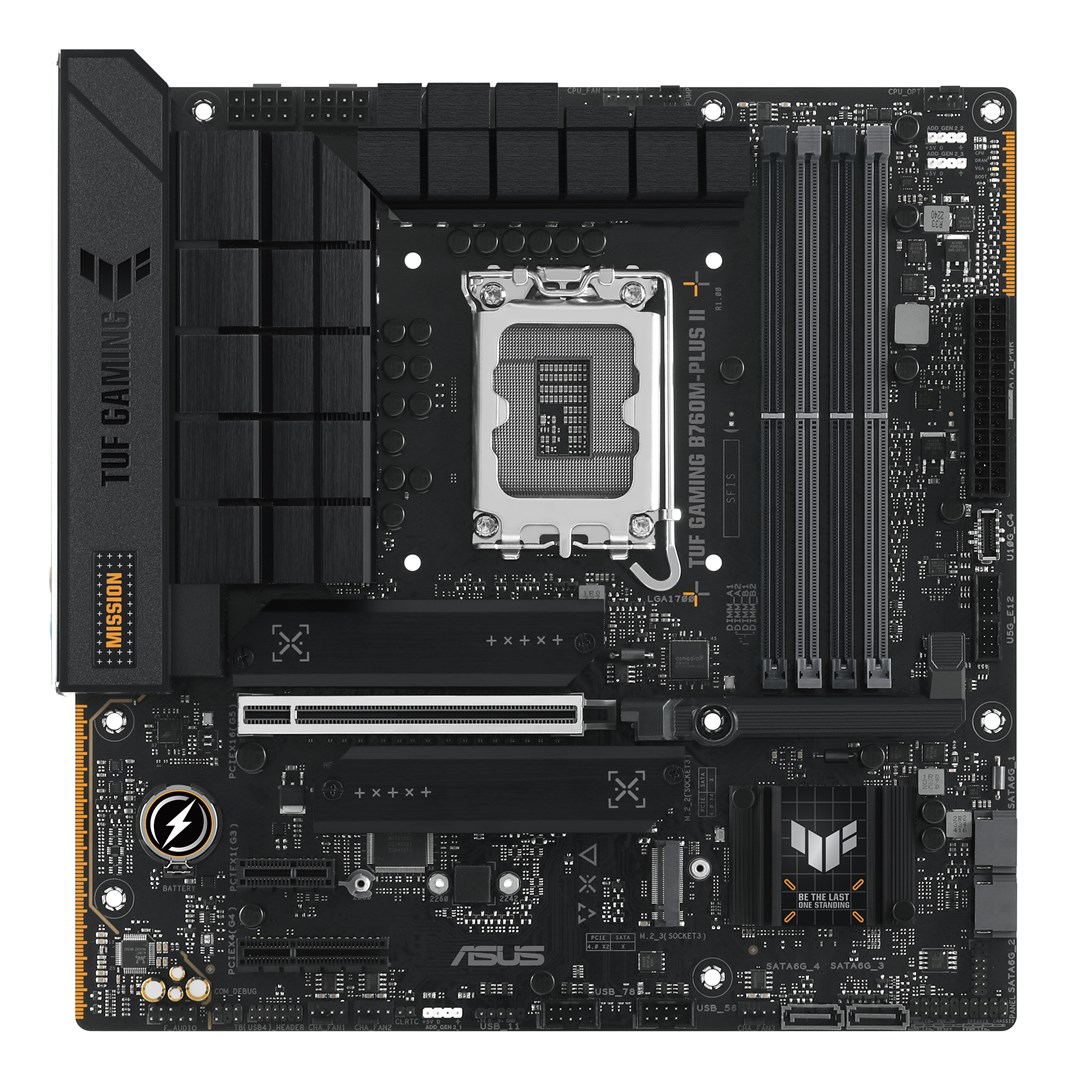

ASUS TUF GAMING B760M-PLUS II Intel B760 LGA 1700 micro ATX 90MB1HD0-M0EAY0

ASUS TUF GAMING B760M-PLUS II Motherboard

ASUS TUF GAMING B760M-PLUS II Motherboard has the LGA 1700 processor socket. It also has the Intel B760 chipset.

Characteristics
Component type
Motherboard
Processor socket
LGA 1700
Supported memory type
DDR5
Motherboard chipset
Intel B760
Maximum supported memory speed
7800 MHz
Processor | Compatible processor series
Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Processor | Processor manufacturer
Intel
Processor | Supported processor sockets
LGA 1700
Graphics | Parallel processing technology support
Not supported
Features | Audio output channels
7.1 channels
Features | Motherboard form factor
micro ATX
Features | Windows operating systems supported
Windows 10 x64, Windows 11
Features | Motherboard chipset family
Intel
Memory | ECC сompatibility
Non-ECC
Memory | Supported memory clock speed (max)
7800 MHz
Memory | Number of memory slots
4
Memory | Supported memory clock speeds
6600, 6200, 5000, 6000, 6800, 4800, 5200, 7600, 7800, 7400, 7000, 5600, 7200, 5800, 5400, 6400 MHz
Memory | Supported memory types
DDR5-SDRAM
Memory | Memory slots type
DIMM
Memory | Maximum internal memory
192 GB
Memory | Unbuffered memory
Yes
Memory | Memory channels
Dual-channel
Weight & dimensions | Height
50 mm
Weight & dimensions | Width
244 mm
Weight & dimensions | Depth
244 mm
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | Wi-Fi
No
Network | Ethernet LAN
Yes
Internal I/O | 12V power connector
Yes
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Internal I/O | Thunderbolt headers
1
Internal I/O | Front panel audio connector
Yes
Internal I/O | Number of SATA III connectors
4
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Internal I/O | USB 2.0 connectors
3
Internal I/O | CPU fan connector
Yes
Internal I/O | Number of chassis fan connectors
3
Internal I/O | ATX Power connector (24-pin)
Yes
BIOS | BIOS type
UEFI AMI
Packaging data | Package weight
1.65 kg
Packaging data | Package height
71 mm
Packaging data | Package depth
265 mm
Packaging data | Package width
280 mm
Packaging content | Screws included
Yes
Packaging content | Cables included
SATA
Storage controllers | Number of HDDs supported
4
Storage controllers | RAID levels
10, 1, 0, 5
Storage controllers | Number of storage drives supported
7
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive types
HDD & SSD
Rear panel I/O ports | USB 3.2 Gen 2x2 Type-C ports quantity
1
Rear panel I/O ports | USB 2.0 ports quantity
4
Rear panel I/O ports | Headphone outputs
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | S/PDIF out port
Yes
Rear panel I/O ports | DisplayPorts quantity
1
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | Microphone in
Yes
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Expansion slots | PCI Express x4 (Gen 4.x) slots
1
Expansion slots | PCI Express x1 (Gen 3.x) slots
1
Expansion slots | Number of M.2 (M) slots
3
Other features | Weight
982 g
Safety warning | Warnings
Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
