Article: DMC-000079162
ASUS ROG STRIX X870E-E GAMING WIFI7 NEO AMD X870E Socket AM5 ATX 90MB1P20-M0EAY0 DDR5

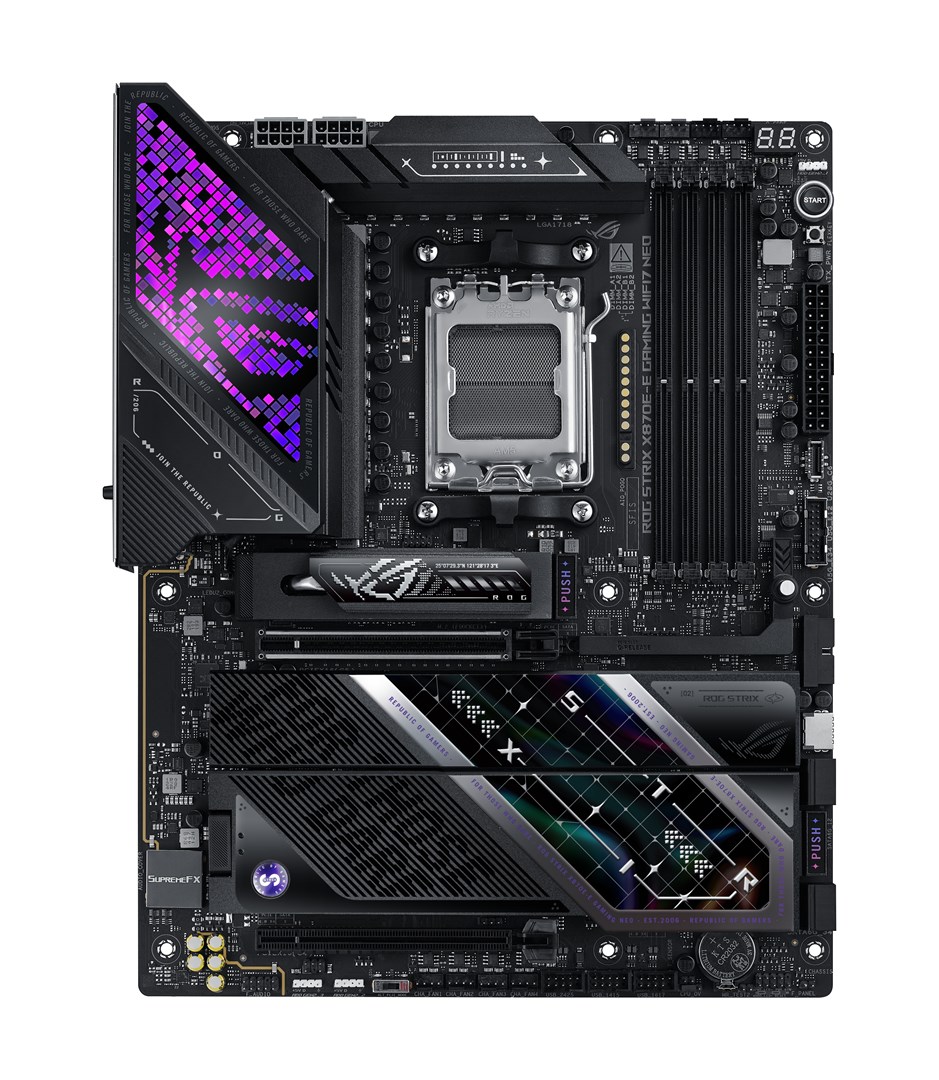

ASUS ROG STRIX X870E-E GAMING Motherboard

A motherboard for assembling or upgrading a compatible desktop computer. It brings the main components together and provides the foundation for a well-planned system build.

Characteristics
Component type
Motherboard
Processor socket
AM5
Supported memory type
DDR5
Motherboard chipset
AMD X870E
Processor | Compatible processor series
AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series
Processor | Processor manufacturer
AMD
Graphics | Parallel processing technology support
Not supported
Features | Motherboard form factor
ATX
Features | Product colour
Black
Features | Windows operating systems supported
Windows 11
Features | Audio output channels
7.1 channels
Features | Motherboard chipset family
AMD
Memory | ECC сompatibility
ECC & Non-ECC
Memory | Memory slots type
DIMM
Memory | Unbuffered memory
Yes
Memory | Memory channels
Dual-channel
Memory | Supported memory types
DDR5-SDRAM
Memory | Number of memory slots
4
Memory | Maximum internal memory
256 GB
Weight & dimensions | Width
305 mm
Weight & dimensions | Depth
244 mm
Network | Wi-Fi standards
Wi-Fi 7 (802.11be)
Network | WLAN controller model
MediaTek MT7927
Network | Bluetooth
Yes
Network | Ethernet interface type
5 Gigabit Ethernet
Network | Ethernet LAN
Yes
Network | Wi-Fi
Yes
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Internal I/O | USB 3.2 Gen 2x2 connectors
2
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | Front panel audio connector
Yes
Internal I/O | USB 2.0 connectors
3
Internal I/O | Chassis intrusion connector
Yes
Internal I/O | RGB LED pin header
Yes
Internal I/O | Number of SATA III connectors
4
Internal I/O | CPU fan connector
Yes
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | 12V power connector
Yes
Internal I/O | Number of chassis fan connectors
5
BIOS | Clear CMOS button
Yes
BIOS | BIOS type
UEFI AMI
Packaging data | Package depth
273 mm
Packaging data | Package weight
2.7 kg
Packaging data | Package width
353 mm
Packaging data | Package height
68 mm
Packaging content | Antenna included
Yes
Packaging content | Cables included
SATA
Packaging content | Screws included
Yes
Storage controllers | RAID levels
1, 5, 10, 0
Storage controllers | Number of HDDs supported
4
Storage controllers | Supported storage drive interfaces
SATA III, M.2
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive types
HDD & SSD
Storage controllers | Number of storage drives supported
9
Rear panel I/O ports | USB4 Gen 3x2 ports quantity
2
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
9
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Rear panel I/O ports | Microphone in
Yes
Rear panel I/O ports | S/PDIF out port
Yes
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Expansion slots | 2nd M.2 largest key size
2280
Expansion slots | 1st M.2 largest key size
2280
Expansion slots | 3rd M.2 largest key size
2280
Expansion slots | 2nd M.2 highest PCI Express generation
5.0
Expansion slots | 1st M.2 highest PCI Express generation
5.0
Expansion slots | 5th M.2 largest key size
2280
Expansion slots | 5th M.2 highest PCI Express generation
4.0
Expansion slots | 4th M.2 highest PCI Express generation
4.0
Expansion slots | 3rd M.2 highest PCI Express generation
4.0
Expansion slots | 4th M.2 largest key size
2280
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | Number of M.2 (M) slots
5
Other features | Weight
1.9 kg
