Article: DMC-000030776

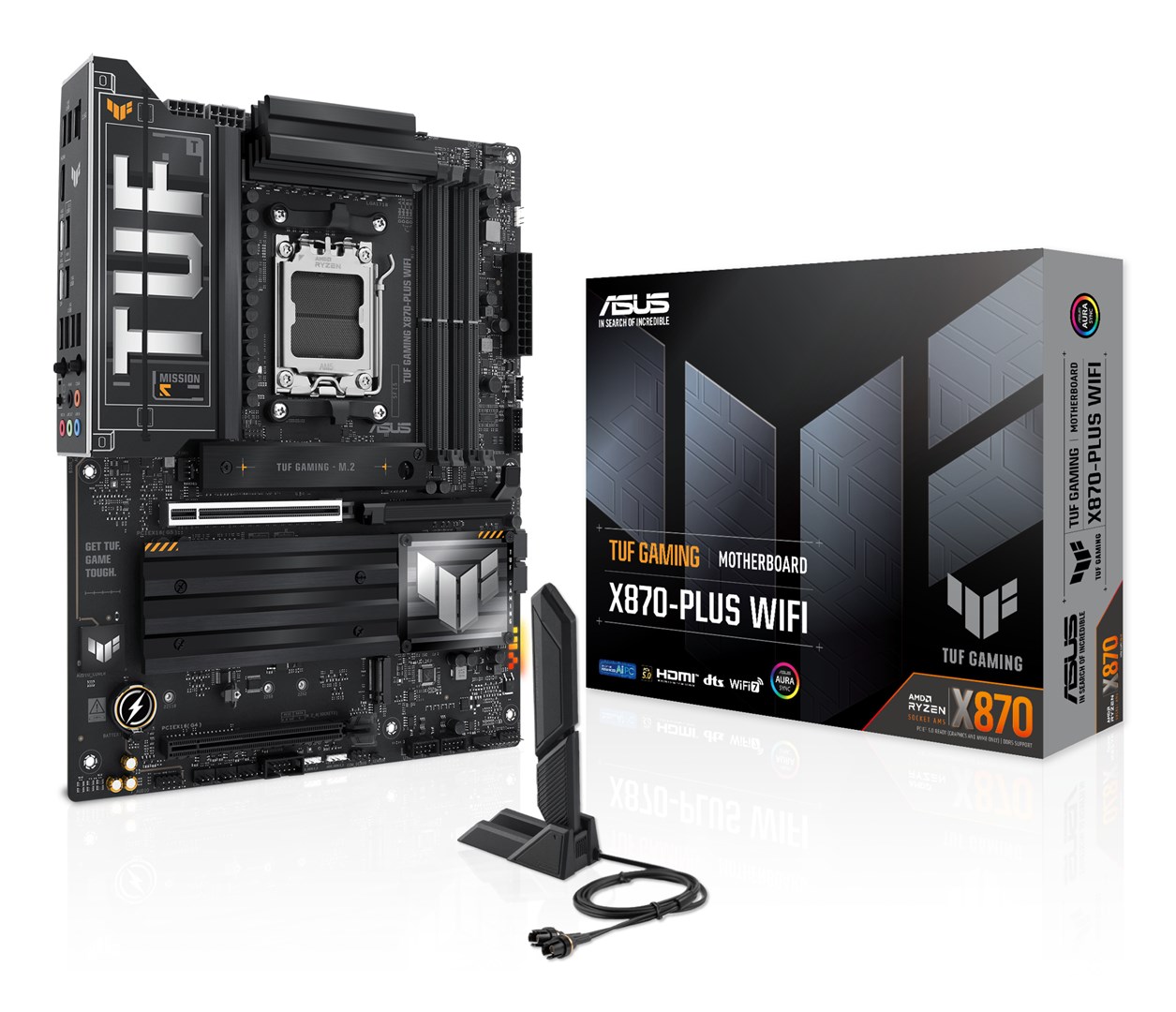

ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX 90MB1IU0-M0EAY0 DDR5

ASUS TUF GAMING X870-PLUS WIFI Motherboard

ASUS TUF GAMING X870-PLUS WIFI Motherboard has the AM5 processor socket. It also has the AMD X870 chipset.

Characteristics
Component type
Motherboard
Processor socket
AM5
Supported memory type
DDR5
Motherboard chipset
AMD X870
Processor | Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Processor | Processor manufacturer
AMD
Graphics | Parallel processing technology support
Not supported
Graphics | On-board graphics card
No
Features | Motherboard form factor
ATX
Features | Motherboard chipset family
AMD
Features | Product colour
Black
Features | Audio output channels
7.1 channels
Features | Audio chip
Realtek ALC1220P
Features | Windows operating systems supported
Windows 11
Memory | Supported memory types
DDR5-SDRAM
Memory | Number of memory slots
4
Memory | ECC сompatibility
ECC & Non-ECC
Memory | Memory slots type
DIMM
Memory | Maximum internal memory
256 GB
Memory | Unbuffered memory
Yes
Memory | Memory channels
Dual-channel
Weight & dimensions | Depth
244 mm
Weight & dimensions | Width
305 mm
Network | Ethernet LAN
Yes
Network | Ethernet interface type
Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Network | Bluetooth version
5.4
Network | Wi-Fi standards
Wi-Fi 7 (802.11be)
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Network | Wi-Fi
Yes
Network | Bluetooth
Yes
Internal I/O | 12V power connector
Yes
Internal I/O | USB 3.2 Gen 2x2 connectors
1
Internal I/O | Number of SATA III connectors
2
Internal I/O | Number of COM connectors
1
Internal I/O | Front panel audio connector
Yes
Internal I/O | USB 2.0 connectors
2
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | Number of chassis fan connectors
4
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | CPU fan connector
Yes
BIOS | BIOS type
UEFI AMI
Storage controllers | Number of HDDs supported
2
Storage controllers | RAID support
Yes
Storage controllers | RAID levels
1, 5, 10, 0
Storage controllers | Number of storage drives supported
6
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | Supported storage drive types
HDD & SSD
Rear panel I/O ports | USB4 Gen 3x2 ports quantity
2
Rear panel I/O ports | USB 2.0 ports quantity
1
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | Microphone in
Yes
Rear panel I/O ports | USB connector type
USB Type-C, USB Type-A
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Expansion slots | Number of M.2 (M) slots
4
Safety warning | Warnings
Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
