Article: DMC-000031793

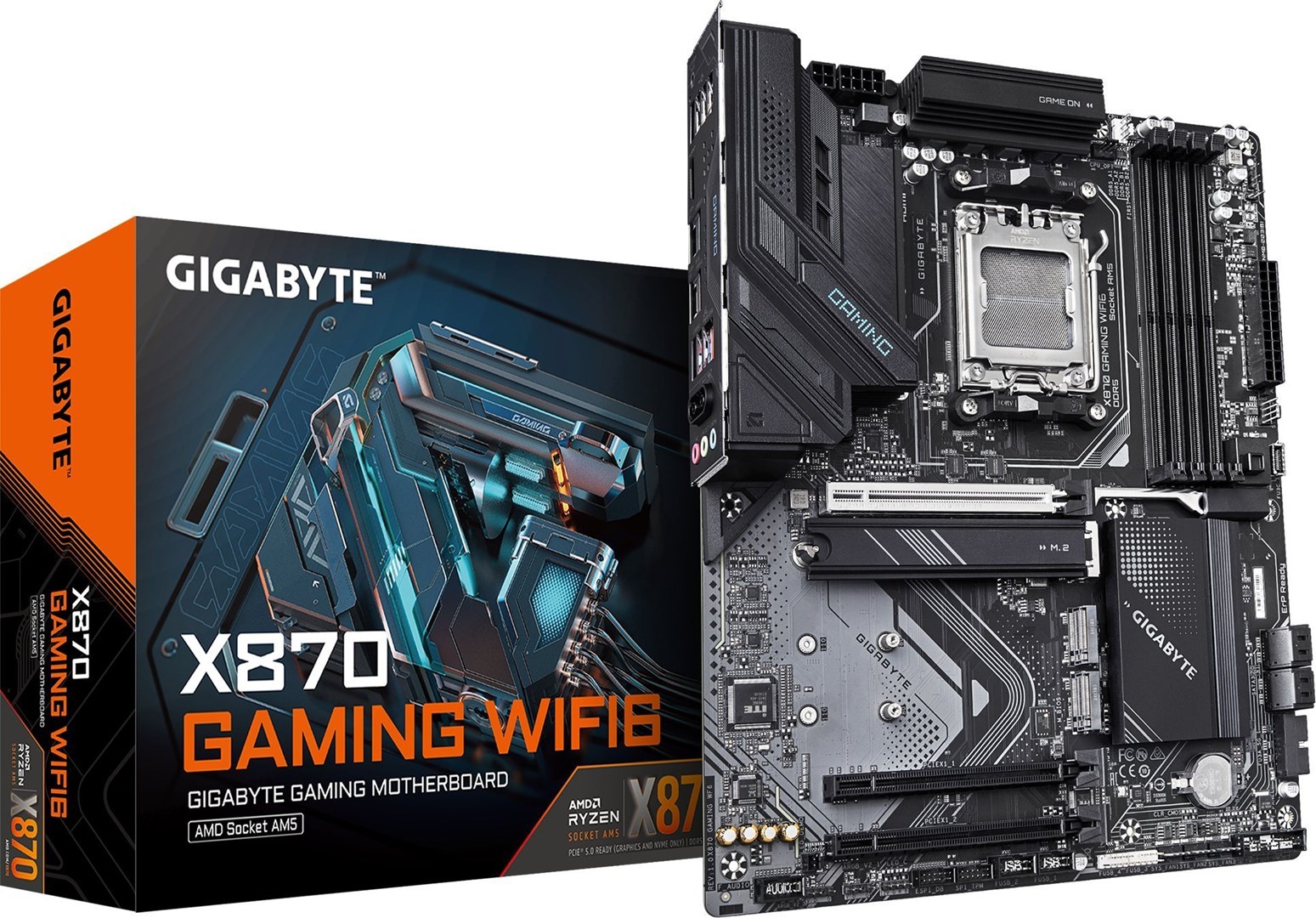

GIGABYTE X870 GAMING WIFI6 Motherboard X870 Gaming WF6

GIGABYTE X870 GAMING WIFI6 Motherboard

GIGABYTE X870 GAMING WIFI6 Motherboard has the AM5 processor socket. It also has the AMD X870 chipset.

Characteristics
Component type
Motherboard
Processor socket
AM5
Supported memory type
DDR5
Motherboard chipset
AMD X870
Maximum supported memory speed
8000 MHz
Processor | Processor manufacturer
AMD
Processor | Compatible processor series
AMD Ryzen™ 7
Processor | Maximum internal memory supported by processor
256 GB
Processor | Supported processor sockets
Socket AM5
Graphics | DirectX version
12.0
Features | PC health monitoring
Voltage, Fan, Temperature
Features | Audio output channels
7.1 channels
Features | Windows operating systems supported
Windows 10 x64, Windows 11 x64
Features | Motherboard chipset family
AMD
Features | Motherboard form factor
ATX
Features | Product colour
Black
Memory | Number of memory slots
4
Memory | Memory channels
Dual-channel
Memory | Memory slots type
DIMM
Memory | Supported memory types
DDR5-SDRAM
Memory | Supported memory clock speed (max)
8000 MHz
Memory | Supported memory clock speeds
6200, 6666, 4400 MHz, 5200, 6600, 7000, 4800, 6800, 6000, 7600, 7800, 8000, 5600, 7200, 6400 MHz
Memory | Supported memory module capacities
24GB, 12GB, 64GB, 16GB, 32GB, 8GB, 2GB, 4GB, 1GB, 40GB, 48GB
Memory | Maximum internal memory
256 GB
Weight & dimensions | Width
305 mm
Weight & dimensions | Height
35 mm
Weight & dimensions | Depth
244 mm
Network | Bluetooth version
5.3
Network | Ethernet interface type
2.5 Gigabit Ethernet
Network | Wi-Fi
Yes
Network | Wi-Fi standards
Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)
Network | Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Network | WLAN controller model
Realtek RTL8851BE
Network | Ethernet LAN
Yes
Network | Bluetooth
Yes
Internal I/O | Total number of SATA connectors
4
Internal I/O | USB 2.0 connectors
4
Internal I/O | 12V power connector
Yes
Internal I/O | Number of SATA III connectors
4
Internal I/O | EPS power connector (8-pin)
Yes
Internal I/O | TPM connector
Yes
Internal I/O | RGB LED pin header
Yes
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | USB 3.2 Gen 2x2 connectors
1
BIOS | Desktop Management Interface (DMI) version
2.7
BIOS | BIOS type
UEFI AMI
BIOS | Clear CMOS button
Yes
BIOS | Clear CMOS jumper
Yes
Packaging data | Package width
335 mm
Packaging data | Package height
80 mm
Packaging data | Package weight
2.53 kg
Packaging data | Package depth
270 mm
Packaging content | Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Packaging content | Batteries included
Yes
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Storage controllers | RAID levels
0, 10, 1
Storage controllers | Number of HDDs supported
7
Storage controllers | Number of storage drives supported
4
Storage controllers | RAID support
Yes
Storage controllers | Supported storage drive types
HDD & SSD
Rear panel I/O ports | HDMI ports quantity
1
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Rear panel I/O ports | S/PDIF out port
Yes
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Rear panel I/O ports | DisplayPorts quantity
2
Rear panel I/O ports | USB 2.0 ports quantity
4
Rear panel I/O ports | Microphone in
Yes
Rear panel I/O ports | USB4 Gen 2x2 ports quantity
2
Expansion slots | PCI Express x4 slots
2
Expansion slots | Number of M.2 (M) slots
3
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Battery | Number of battery cells
1
Battery | Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery | Battery weight
3 g
Battery | Battery type
CR2032
Battery | Lithium weight per battery
0.07 g
Other features | Weight
2.23 kg
